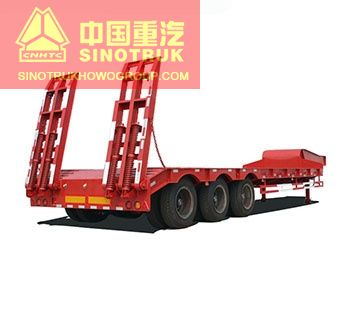

3 axle 50t Gooseneck Heavy Duty Lowbed Truck Low Bed Semi Trailer


Specification For Lowbed Semi Trailer
Overall dimension (mm)	12500x2500x1550
Curb weight (kg)	7000
Loading capacity	50 000 kg
Axle brand and number	13 ton , FUWA brand ,3 units
Kingpin	2 inch (50mm ) or 3.5 inch ( 90mm )
Landing gear	28 ton, Jost brand , Double speed
Steel spring	-10/10/10 leaf spring suspension
Suspension system	Commen mechanical suspension
The material of main beam	The height of the beam is 500mm, upper plate is 14 mm,down plate is 16mm, middle plate is 8 mm
Tyre and quantity	12R22.5 , 12 units
Platform plate	3 mm diamond plate
Braking system	Dual line braking system
Braking chamber	6 double air chamber
Electrical system	24V, 7 pin socket, one set-6 coin standrad cable
Light	Tail lamp with turn signal , braking lamp&reflector
Tool box	1 set
Spare tire carrier	2 sets
Painting	Optional





Specifications





1. Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

2. Tail lamp with turn signal, brake light & reflector, side lamp etc.

3. Packing Polish with wax before shipping

4. Ramp at rear Common Mechanical / Double climbing ladder

5. Painting According to customer's requirement



For low bed semi truck trailer , we are manufacturer of various kinds of semi trailer , we can provide you factory price with high quality, we can provide OEM service
