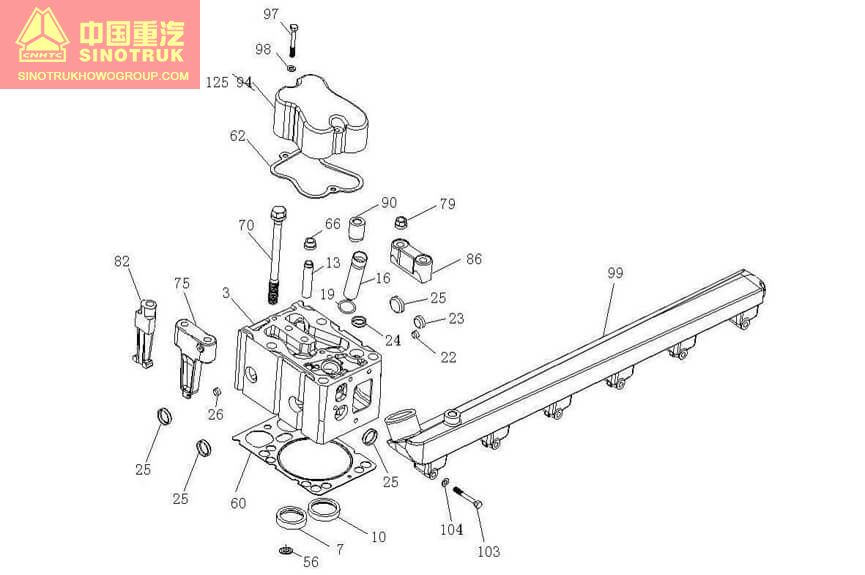

Cylinder Head
- Release time:
- Source:Sinotruk HOWO
:
:
:
:

|
No. |
Part No. |
Part Name |
Qty |
|
1 |
161560040058 |
Cylinder head ass. |
6 |
|
3 |
61560040040A |
Cylinder head |
6 |
|
7 |
VG1560040037 |
Exhaust valve seat |
6 |
|
10 |
VG1560040057 |
Intake valve seat |
6 |
|
13 |
VG1560040031 |
Valve guide |
2 |
|
16 |
VG1560040049 |
Bush |
6 |
|
19 |
VG1406060010 |
Sealing washer |
6 |
|
22 |
90003989277 |
Core plug |
6 |
|
23 |
90003989721 |
Core plug |
6 |
|
24 |
90003989725 |
Core plug |
6 |
|
25 |
90003989294 |
Core plug |
24 |
|
26 |
VG1540040011 |
Oil hole plug |
6 |
|
56 |
VG1500040014 |
Spring seat |
6 |
|
60 |
VG1500040049 |
Gasket |
6 |
|
62 |
VG14040021 |
Gasket |
6 |
|
66 |
VG1560040032 |
Sleeve |
12 |
|
70 |
VG1500040023 |
Screw |
24 |
|
75 |
VG1500040009 |
Block |
2 |
|
79 |
VG1200040034 |
Nut |
21 |
|
82 |
VG1200040027 |
Block |
1 |
|
90 |
VG1200040023A |
Block |
5 |
|
97 |
190003800466 |
Screw |
12 |
|
98 |
190003932023 |
Spring washer |
12 |
|
99 |
VG1500040104 |
Water outlet pipe |
1 |
|
103 |
190003800466 |
Screw |
12 |
|
104 |
190003932023 |
Spring washer |
12 |
|
105 |
190003813429 |
Stud |
2 |
|
106 |
190003813467 |
Stud |
2 |
|
107 |
190003871252 |
Nut |
4 |
|
108 |
190014040007 |
Washer |
4 |
|
110 |
VG9003080003 |
Washer |
1 |
|
113 |
190003962014 |
Plug |
1 |
|
115 |
190003932023 |
Spring washer |
12 |
|
125 |
VG14040065 |
Cylinder head cover |
6 |
|
|
VG29114 |
Plug |
1 |
|
|
VG29118 |
Plug |
1 |
