60tons 3 axles tipper semi-trailer
- Release time:
- Source:Sinotruk HOWO

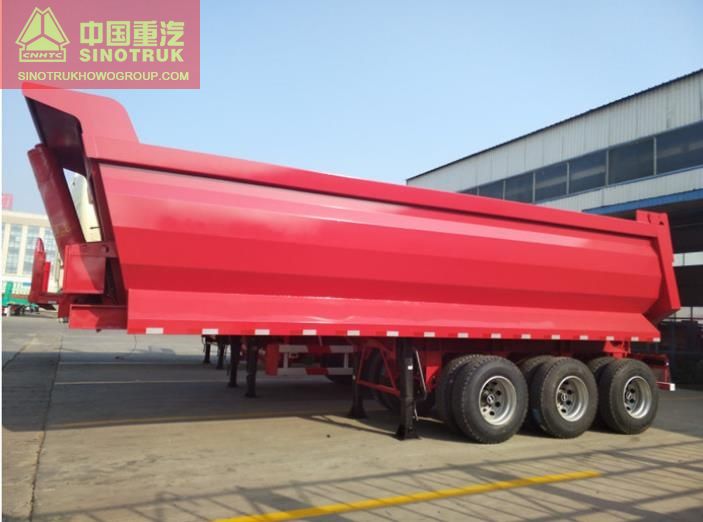

60tons 3 axles tipper semi-trailer
1. tipper semi-trailer specification
| Tare weight | 9000kg |
| Size | 9000mm*2500mm*3800mm |
| Payload | 60T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
| Side beam | no |
| Cross member | channel steel |
| Floor | 4-8mm |
| Side wall | 4-6mm |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension |
| Leafspring | 10pcs*16mm*90mm |
| Tire | 12.00R20 double star brand 12pcs |
| Wheel rim | 8.5-20 jingu brand 12pcs |
| Kingpin | 2" bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Cylinder | HYVA brand or china famouse brand |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |

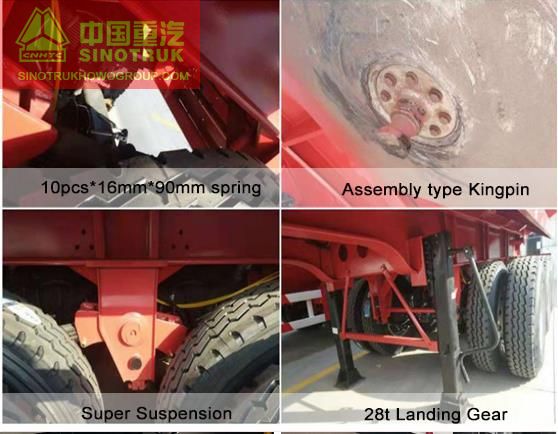

2. details for tipper semi-trailer

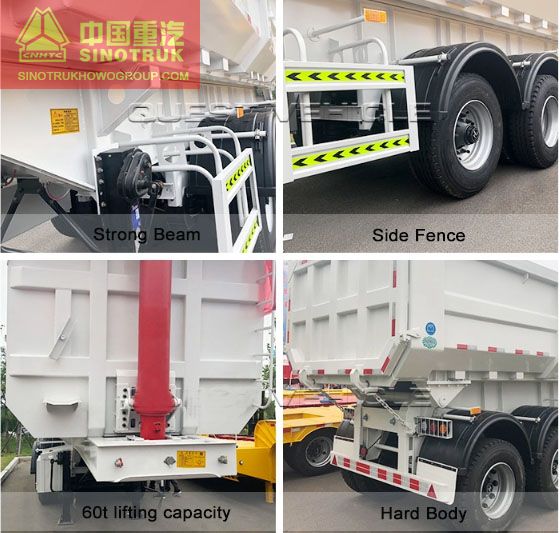

3. strong configuraiton for tipper semi-trailer

4. Shipment
