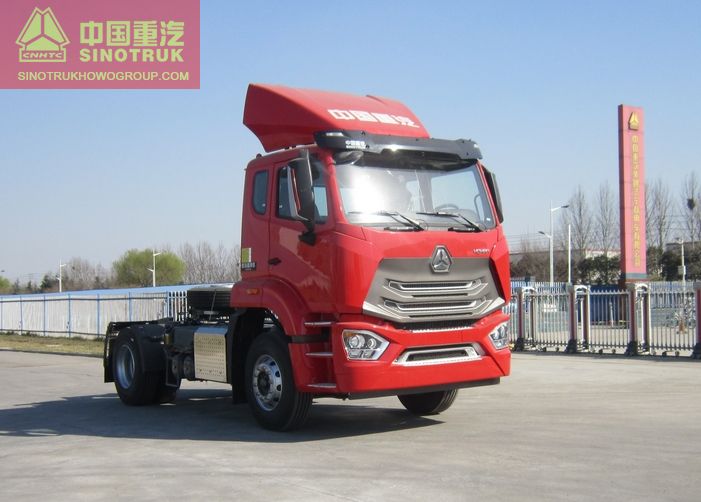

Hohan N5G Series ZZ4185N3616F1 Towing truck chassis
- Release time：
- Source：Sinotruk HOWO
This vehicle is a new generation of high-end heavy truck product newly developed by SINOTRUK using MAN core assembly technology. Its appearance is high and overwhelming, showing the leadership of the King of Highway. Its excellent power, stable and reliable performance, economy and comfort reach the international level. Its safety, reliability and intelligence level are in line with international standards. There are several personalized configuration options. It is suitable for highly organized transportation and high-end logistics in trunk line swap trailer.
| Weight Parameter | Curb Mass (kg) | 6800 | |
| Full Loaded Mass (kg) | 43000 | ||
| Rated Towing Mass (kg) | 35000 | ||
| Dimension Parameter | External Size | Length (mm) | 6175 |
| Width (mm) | 2550 | ||
| Height (mm) | 2900,3090,3880,3500,3790 | ||
| Wheel Base (mm) | 3600 | ||
| Min. Ground Clearance (mm) | 238 | ||
| Performance Parameter | Max. Speed (km/h) | 101 | |
| Economic Speed (km/h) | 70～90 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 14 | ||
| Engine | Model | MC07.31-60 MC07.34-60 MC09.35-60 MC09.35B-60 MC09.38-60 MC11.40-60 MC11.44-60 WP8.350E61 WP10H375E62 WP10H400E62 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1230/1200～1800 1250/1200～1800 1660/1100～1400 1510/1100～1600 1760/1100～1400 1907/1000～1400 2107/1000～1400 1400/1200～1600 1800/1000～1400 1900/1200～1300 | |
| Transmission | HW13709XSTC HW15710C HW19712CL （HW25712XSTCL） | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY12JGK MCY13JGS | |
| Rear Axle Ratio | 4.11、3.7 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 280×80×8 300×80×（8+5） | |
| Suspension (Front/Rear Spring) | 2/-,2/3,2/4,2/5,2/9+6,3/-,3/4,3/5,3/9+6,4/-,4/5,4/9+6,9/-,9/9+6,2/2+-,3/2+-,4/2+- | |
| Tire | 12R22.5,295/80R22.5,315/80R22.5,11.00R20,12.00R20 | |
