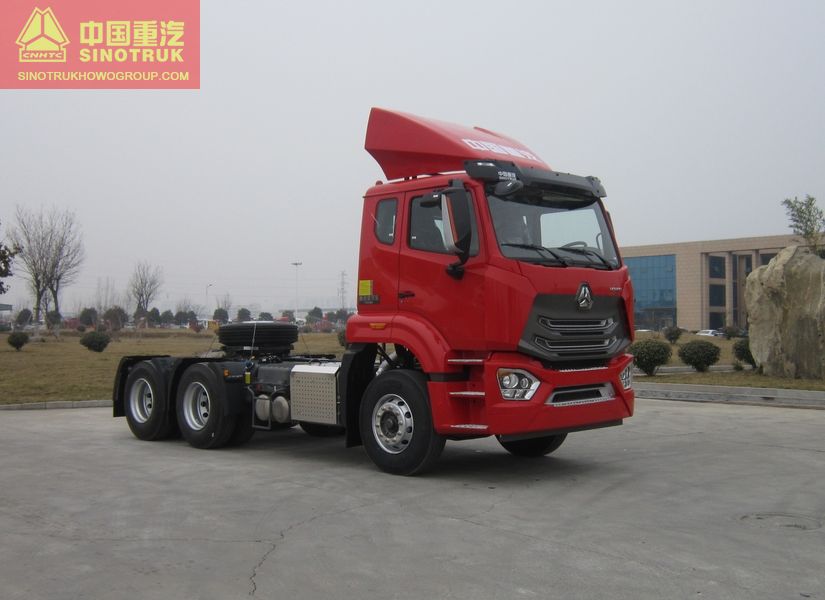

Hohan N6G Series ZZ4255N3446F1 Towing truck chassis
- Release time：
- Source：Sinotruk HOWO
This vehicle is a new generation of high-end heavy truck product newly developed by SINOTRUK using MAN core assembly technology. Its appearance is high and overwhelming, showing the leadership of the King of Highway. Its excellent power, stable and reliable performance, economy and comfort reach the international level. Its safety, reliability and intelligence level are in line with international standards. There are several personalized configuration options. It is suitable for highly organized transportation and high-end logistics in trunk line swap trailer.
| Weight Parameter | Curb Mass (kg) | 8800,9600 | |
| Full Loaded Mass (kg) | 49000 | ||
| Rated Towing Mass (kg) | 40000,39200 | ||
| Dimension Parameter | External Size | Length (mm) | 7050 |
| Width (mm) | 2550 | ||
| Height (mm) | 2900,3090,3880,3500,3790 | ||
| Wheel Base (mm) | 3425+1350,3400+1400 | ||
| Min. Ground Clearance (mm) | 238 | ||
| Performance Parameter | Max. Speed (km/h) | 101 | |
| Economic Speed (km/h) | 70～90 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 15.7 | ||
| Engine | Model | MC09.35-60 MC09.38-60 MC11.40-60 MC11.44-60 WP10H400E62 MC09.35B-60 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1660/1100～1400 1760/1100～1400 1907/1000～1400 2107/1000～1400 1900/1200～1300 1510/1100～1600 | |
| Transmission | HW19712CL （HW25712XSTCL/HW25716XSTCL/HW25716XACL) | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY12BGK | |
| Rear Axle Ratio | 3.7、4.11 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 280×80×8 300×80×（8+5） 300×80×（8+8） 300×80×（8+8+8） | |
| Suspension (Front/Rear Spring) | 2/-,2/3,2/4,2/5,2/12,3/-,3/4,3/5,3/12,4/-,4/5,4/12,9/-,9/12 | |
| Tire | 12R22.5,295/80R22.5,315/80R22.5 18PR/315/80R22.5 16PR,11.00R20,12.00R20 16PR | |
