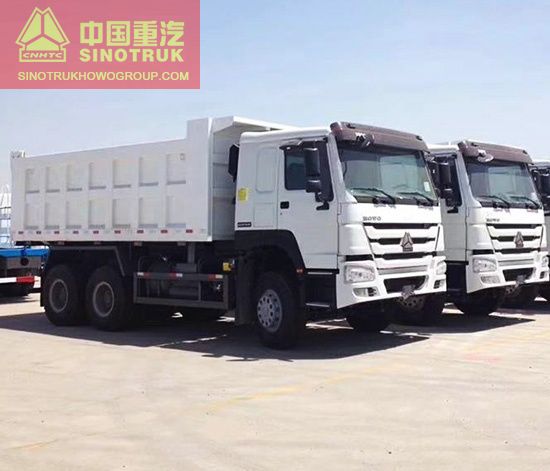

Howo Sinotruck 6*4 Drive Dump Truck For Sale
1.HW76 cab(single sleeping, with air-condition)
2.all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds
3. Oversize dimensions 9510x2496x3450mm
4.Bottom plate 8mm Van body material Common steel
5.The Sinotruck 6*4 Drive Dump Truck works together with the excavators, wheel roaders, track transporter and other machines
| Truck Model |
ZZ3257S4647 SINOTRUCK 6*4 dump truck for sale |
|
| Truck Brand |
SINOTRUK –HOWO |
|
| Dimension(Lx W xH)(unloaded)(mm) | 9510x2496x3450 | |
| Cargo body size (L*W*H) |
5800x2300x1115 |
|
|
Lift type of Carriage |
Ventral lifting(optional) |
|
|
Approaching angle/Departure angle(°) |
14/21 |
|
|
Overhang(front/rear) (mm) |
1500/2035 |
|
|
Wheel base (mm) |
4625+1350 | |
|
Max speed(km/h) |
80 |
|
|
Curb weight(kg) |
12490 |
|
|
Loading Weight(kg) |
25000 |
|
|
Fuel tanker capacity(L) |
300L |
|
|
Clutch |
Single-plate dry clutch Φ430mm |
|
|
Engine Model
|
Model |
WD615.47 |
|
Horse Power, max(kw/rpm) |
371HP(optional) |
|
| Emission |
EURO II(optional) |
|
|
Fuel Type |
diesel |
|
|
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
8118 |
|
Front axle |
HF9 |
|
|
Rear axle |
HC16 |
|
|
Color |
Optional |
|
|
Tire |
12.00R20 Steel wire tire ,10+1 spare |
|
|
Electrical system |
Operating voltage |
24V, negative grounded |
|
Starter |
24V,7.35KW |
|
|
Alternator |
28V,1500W |
|
|
Batteries |
2*12V.165Ah |
|
|
Cab |
HOWO76 cab, (single sleeper, with air-condition). |
|
