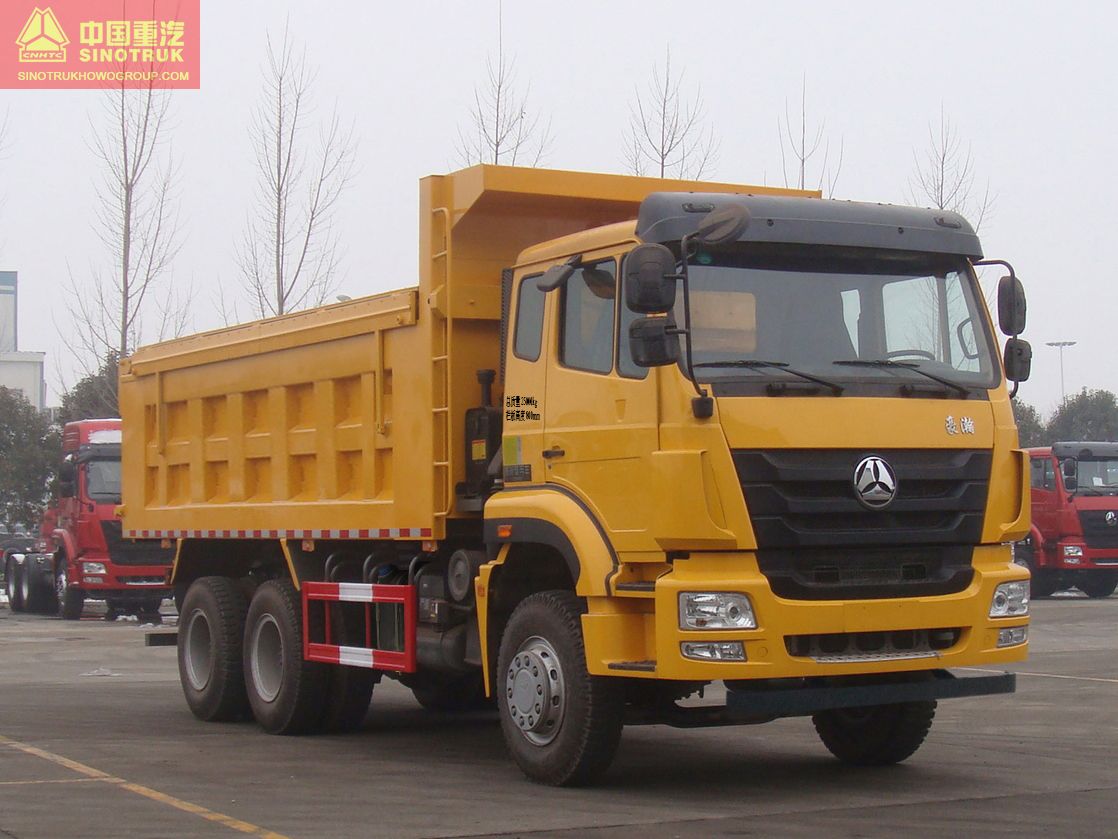

HOWO-G5X Series ZZ5255ZLJN404WE1 Garbage dump trucks
- Release time:
- Source:Sinotruk HOWO

The Hohan series garbage dump trucks feature reliable structure, high carrying capacity, strong power, and stable performance, and enjoy high recognition in the market; they can meet the requirements for use in urban, suburban and other areas, suitable for short-distance garbage transport.
| Weight Parameter | Curb Mass (kg) | 12170 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 8690,8780 |
| Width (mm) | 2550 | ||
| Height (mm) | 2800,3500 | ||
| Wheel Base (mm) | 4000+1350,3975+1400 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | ||
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 17.800000000000001 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100-1400,1700/1100-1400,1760/1100-1400 | |
| Transmission | HW19710 | |
| Clutch(mm) | Heavy duty model B, model 21 | |
| Rear Axle Type | ST16、AC16 | |
| Rear Axle Ratio | 4.8、4.77 | |
| Fuel Tank (L) | 300 | |
| Frame Section(mm) | 300*80*(8+5)、300*80*(8+8) | |
| Suspension (Front/Rear Spring) | 10/-,10/12 | |
| Tire | 11.00R20,12.00R20 16PR,12R22.5,315/80R22.5 18PR/315/80R22.5 16PR/315/80R22.5 16PR | |
