Huanghe Light Tipper Truck
- Release time：
- Source：Sinotruk HOWO

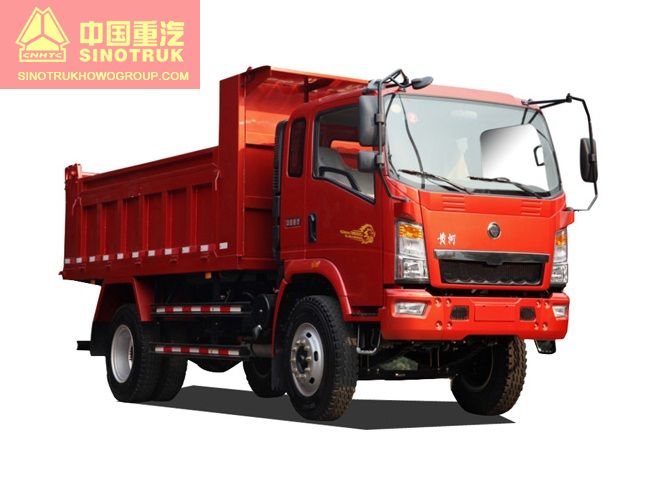

[Huanghe light tipper] ZZ3057E3714C155
Huanghe light tipper is a new product platform developed by SINOTRUK. This series of model applies Q series cab which combines the styling concept of the most popular LDTs at home and abroad with that of the latest SINOTRUK A7 series cab, ensuring elegant appearance, luxury and comfortable interiors. What‘s more, it possesses excellent fuel economy, strong power, great carrying capacity, stable and reliable performance, and is applicable for site construction and short-distance transport.
Technical Parameters
| Mass Parameter | Curb Weight（kg） | 3310 | |
| Fully-Loaded Mass（kg） | 5480 | ||
| Towable Mass（kg） | |||
| Dimensions | Overall Dimensions | Length（mm） | 6600 |
| Width（mm） | 2350 | ||
| Height（mm） | 2970 | ||
| Wheel Base（mm） | 3650 | ||
| Minimum Ground Clearance（mm） | 240 | ||
| Performance Parameters | Maximum Speed（km/h） | 75 | |
| Economic Speed（km/h） | 60 | ||
| Maximum Gradability（%） | ＞30 | ||
| Minimum Turning Diameter（m） | 14.5 | ||
Vehicle Disposition
| Engine | Model | YN38PE-2 |
| Net Power（kw）/Rotating Speed（r/min） | 87/3000 | |
| Maximum Torque（Nm）/Rotating Speed（r/min） | 340/1800~2200 | |
| Gearbox | HW50508C | |
| Clutch（mm） | 325 | |
| Rear Axle Type | HGZ080QB | |
| Rear Axle Gear Ratio | 6.833 | |
| Oil Tank（L） | 160 | |
| Chassis Cross Section（mm） | 800×250×70×(7+4) | |
| Suspension (Frontal & Rear Springs) | 11/12+9 | |
| Tires | 9.00R20 | |
