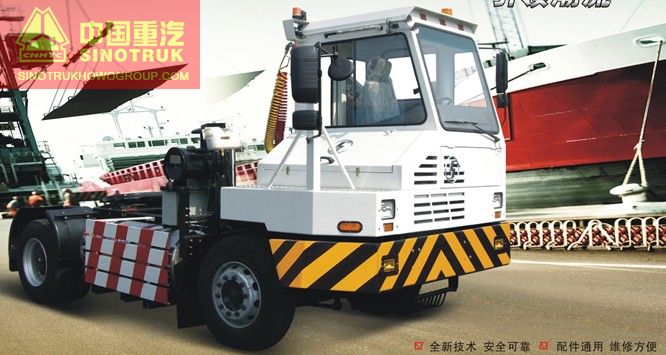

HOVA Terminal Tractor Truck 4X2
- Release time：
- Source：Sinotruk HOWO
1. Skinned body single-side cab has broad view and good safety.
2. Strong, firm and durable truck body.
3. Strong tri-class reduction special axle has good bearing capacity in condition of low speed and big torque.
4. WABCO brake system and VOSS quick-connection plug ensure brake safety of heavy duty truck working.
5. It can meet low-speed, short distance, super-heavy loading and relentless work; it used for port, storage yard, airport, underground mine, logistics park, etc.
| Technical parameters of HOVA terminal tractor truck | |||
| Representative truck model | ZZ5371TQYM28101 | ZZ5371TQYMC32101 | |
| Rated engine power (KW/rpm) | 196/2200(270hp) | 196/2200(270hp) | |
| Transmission type | automatic | automatic | |
|
Size parameters |
Overall Dimension(L*W*H) (mm) |
4720*2495*3000 | 5160*2495*3100 |
| Wheelbase (mm) | 2800 | 3200 | |
|
Front /rear overhang (mm) |
1300/620 | 1350/620 | |
| Track (front/rear) (mm) | 2046/1850 | 2031/1850 | |
| Seat front distance (mm) | 240 | 240 | |
|
Weight parameters |
kerb mass (kg) | 6400 | 6900 |
|
Maximum total mass of train (kg) |
70000 | 70000 | |
|
Performance parameters |
Max. speed (km/h) | 39 | 39 |
| Max. traction (kN) | 147 | 147 | |
| Max. gradeability % | 20 | 20 | |
| Min. turning radius (mm) | 5700 | 6000 | |
| Height of coupling face (mm) | 1250 | 1240 | |
