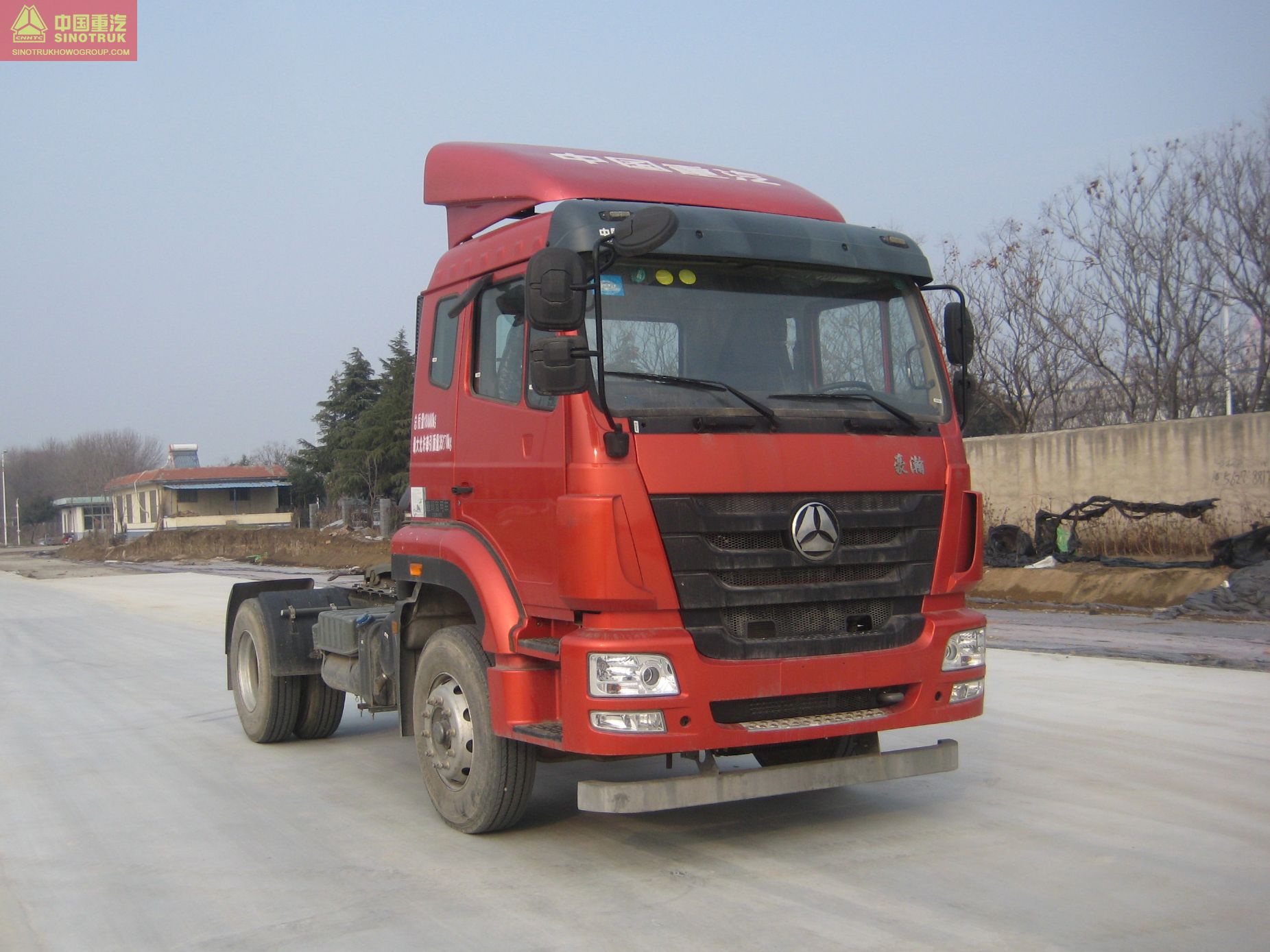

HOWO-G5X Series ZZ4185N361WE1 Tractor truck
- Release time：
- Source：Sinotruk HOWO
The Hohan series tractors feature strong power, low fuel consumption, stable and reliable performance, light weight, and offer a variety of personalized configuration options. The newly designed "Hohan" cab is luxurious, elegant, safe and comfortable. For different application environments, our company adopts all-new optimization and matching methods, to fully meet the needs of different users. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | ||
| Full Loaded Mass (kg) | 18000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 6175 |
| Width (mm) | 2510 | ||
| Height (mm) | 3140,3540,3820 | ||
| Wheel Base (mm) | |||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 102 | |
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 14 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100-1400,1700/1100-1400,1760/1100-1400 | |
| Transmission | HW13710、HW19710 | |
| Clutch（mm） | Heavy duty model B, model 21 | |
| Rear Axle Type | H457、MCY13 | |
| Rear Axle Ratio | 4.111、4.11 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 270*85*10 | |
| Suspension (Front/Rear Spring) | 2/-,2/4,2/5,2/9+6,3/-,3/4,3/5,3/9+6,4/-,4/5,4/9+6,9/-,9/9+6 | |
| Tire | 11.00R20,12.00R20,12R22.5,295/80R22.5,315/80R22.5 | |
