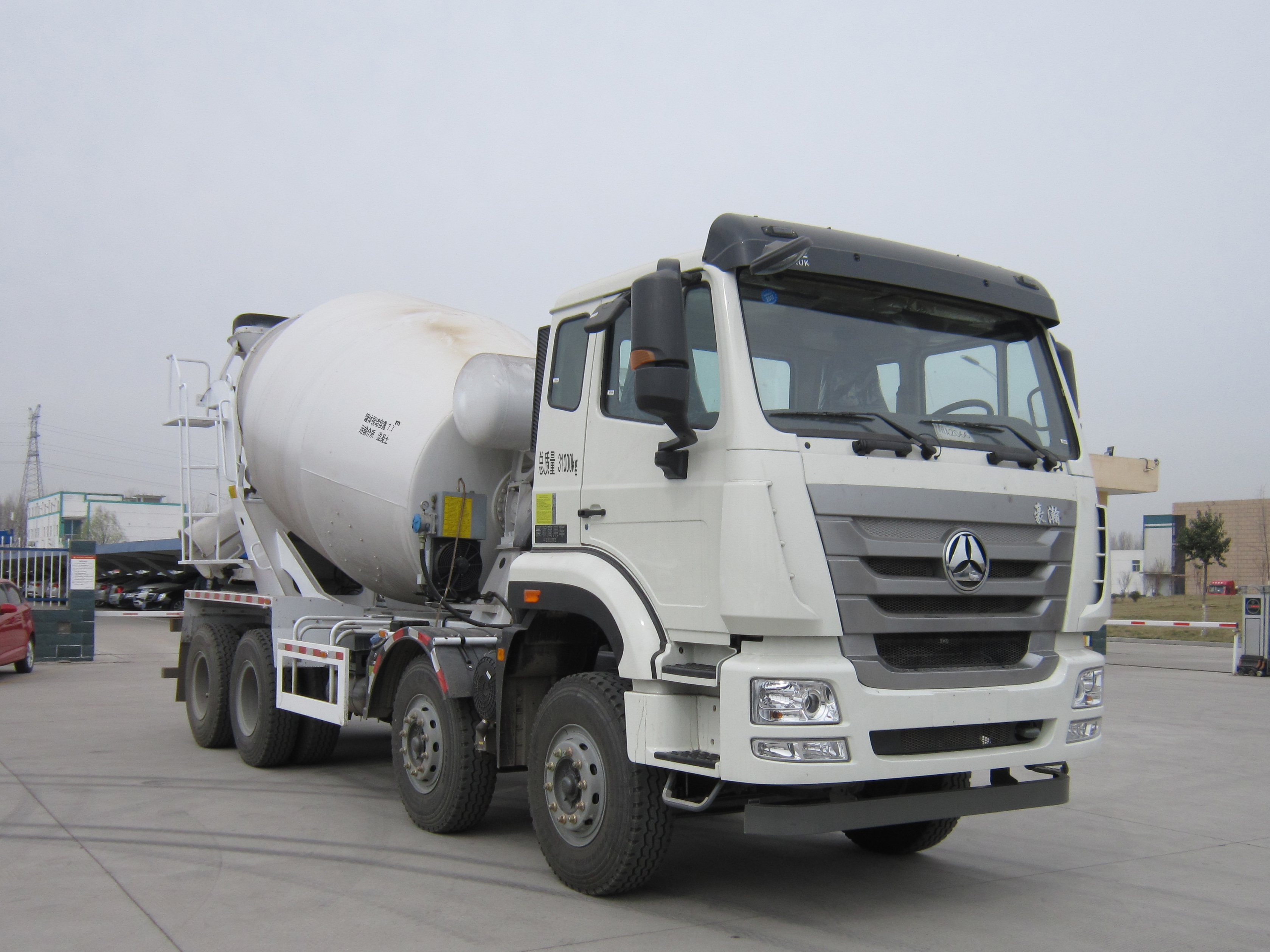

HOWO-G5X Series ZZ5325GJBN326WE1K Concrete transit mixer
- Release time：
- Source：Sinotruk HOWO
The Hohan series mixer trucks features a strong, solid mixing tank and different tank volumes, with a newly designed cab, elegant, safe and comfortable, fully meeting the needs of users. With a compact and proper structure, the trucks provide stable and reliable performance, applicable to various kinds of construction sites.
| Weight Parameter | Curb Mass (kg) | 14420 | |
| Full Loaded Mass (kg) | 32000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 9950 |
| Width (mm) | 2550 | ||
| Height (mm) | 3950 | ||
| Wheel Base (mm) | 1800+3250+1350,1800+3225+1400 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 82 | |
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 21 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100-1400,1700/1100-1400,1760/1100-1400 | |
| Transmission | HW19710、HW19712 | |
| Clutch（mm） | Heavy duty model B, model 21 | |
| Rear Axle Type | H457casting 、AC16 | |
| Rear Axle Ratio | 4.875、5.45 | |
| Fuel Tank (L) | 260 | |
| Frame Section（mm） | 300*80*（8+5）、300*80*(8+8) | |
| Suspension (Front/Rear Spring) | 4/4/-,9/9/-,11/11/-,4/4/2+-,9/9/2+-,11/11/2+- | |
| Tire | 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR | |
