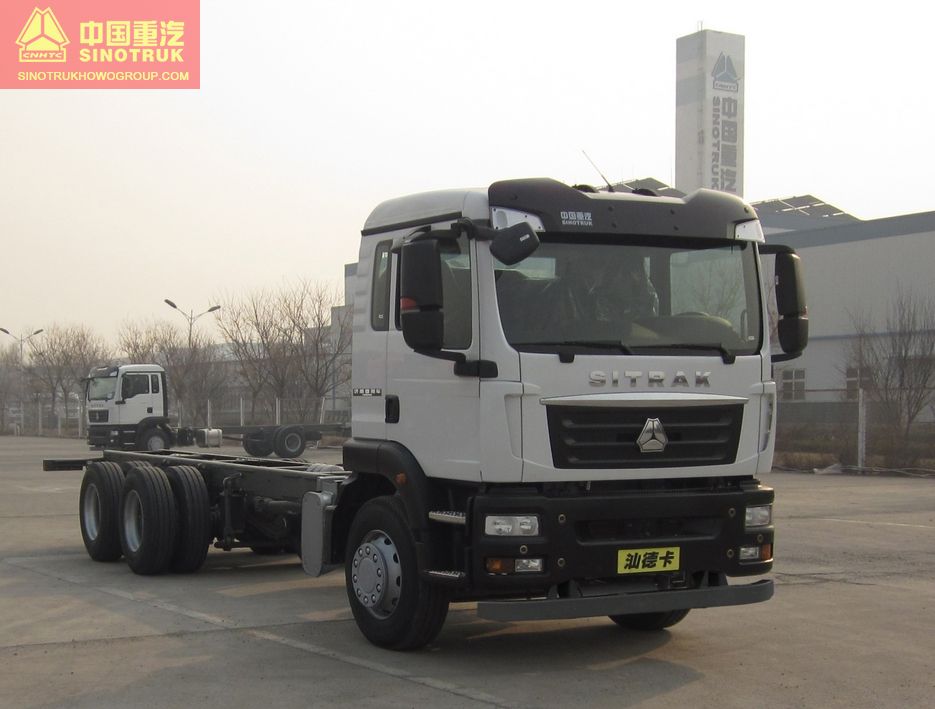

SITRAK-C5H Series ZZ1266N504GE1 Cargo truck chassis
- Release time：
- Source：Sinotruk HOWO
The C5H Series is a new generation of high-end medium duty truck developed by our company based on the core assembly technology from MAN. The new vehicle model features a novel design, strong power, greater carrying capacity and better performance, its power, economy, comfort and mobility meeting the advanced level in China, its safety, reliability and intelligent aligned with international standards; in addition, it offers multiple personalized configuration options, applicable to a variety of medium and high-end forms of logistics and transport.
| Weight Parameter | Curb Mass (kg) | 7600 | |
| Full Loaded Mass (kg) | 26000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 8705 9105 9505 9805 10155 11725 11925 |
| Width (mm) | 2496 | ||
| Height (mm) | 3035 3335 | ||
| Wheel Base (mm) | 3875+1400 4275+1400 4575+1400 4975+1400 5175+1400 5775+1400 5975+1400 | ||
| Min. Ground Clearance (mm) | 266 | ||
| Performance Parameter | Max. Speed (km/h) | 110 | |
| Economic Speed (km/h) | 70～90 | ||
| Max. Grade Ability (%) | 34 | ||
| Min. Turning Diameter (m) | 18 19 20 21 22 23.7 24 | ||
| Engine | Model | MC07.28-50 MC07.31-40 MC07.34-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1100/1200～1800 1230/1200～1800 1250/1200～1800 | |
| Transmission | ZF9S1310TO HW13709XSTC HW15710ACL | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY11 | |
| Rear Axle Ratio | 3.7 4.11 4.63 5.29 | |
| Fuel Tank (L) | 300、400 | |
| Frame Section（mm） | 280×80×（8+4） | |
| Suspension (Front/Rear Spring) | 3/-/- | |
| Tire | 295/80R22.5 | |
