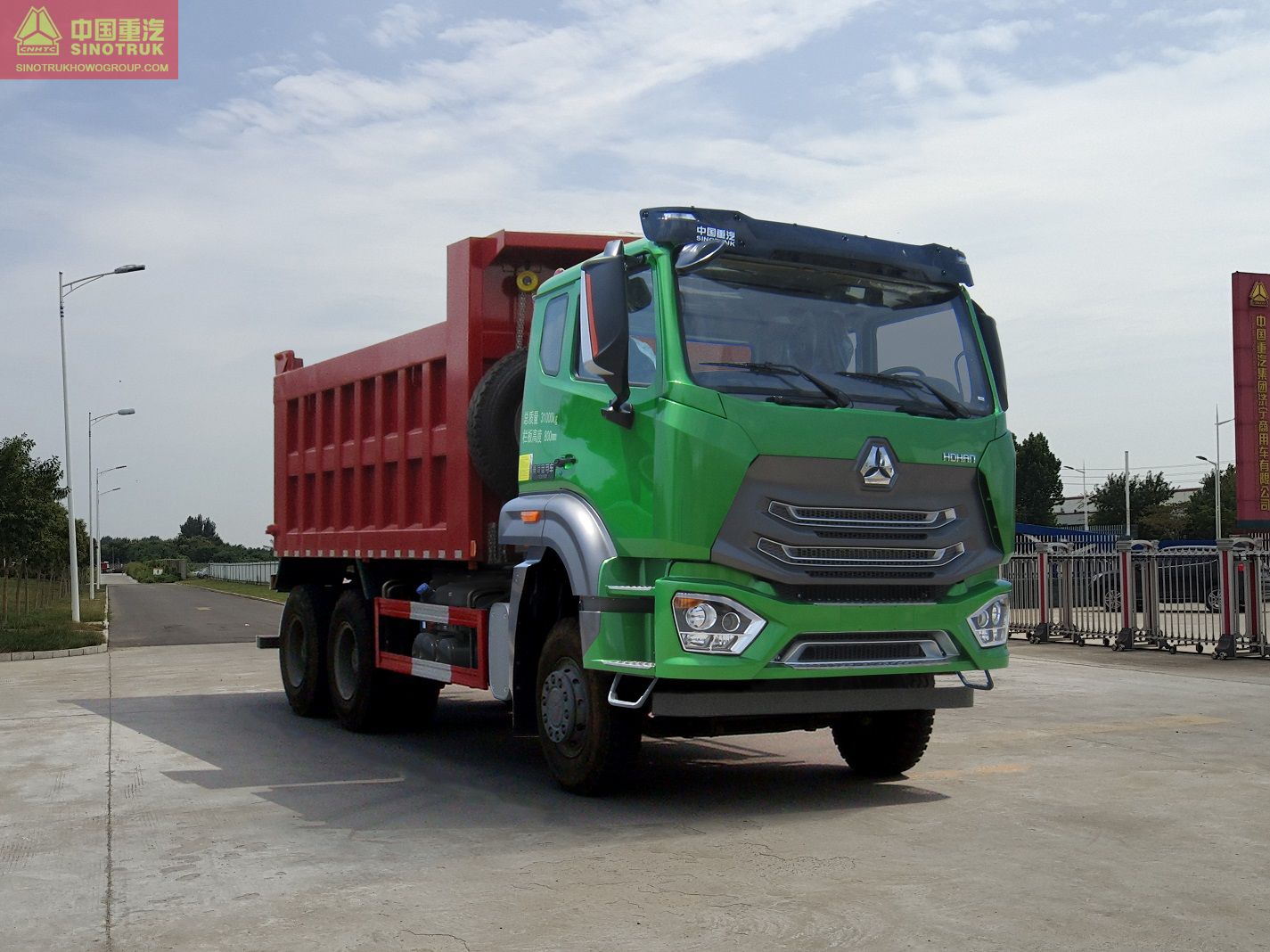

Hohan N6G Series ZZ3255N384WE1 dump truck
- Release time：
- Source：Sinotruk HOWO
The Hohan series dump trucks feature reliable structure, high carrying capacity, strong power, stable performance, and enjoy high recognition in the market. They can meet the requirements for use in construction sites, mining areas and other harsh environments, suitable for short-distance mining earthwork as well as engineering and construction.
| Weight Parameter | Curb Mass (kg) | 12100 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 8450,8600 |
| Width (mm) | 2550 | ||
| Height (mm) | 2800,3500 | ||
| Wheel Base (mm) | 3800+1350,3775+1400 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 75 | |
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 16.5 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100-1400,1700/1100-1400,1760/1100-1400 | |
| Transmission | HW19710 | |
| Clutch（mm） | 435 Diaphragm spring clutch | |
| Rear Axle Type | AC16 | |
| Rear Axle Ratio | 4.7699999999999996 | |
| Fuel Tank (L) | 300 | |
| Frame Section（mm） | 300*80*（8+5） | |
| Suspension (Front/Rear Spring) | 10/-,10/12 | |
| Tire | 11.00R20,12.00R20 16PR,12R22.5,315/80R22.5 18PR/315/80R22.5 16PR/315/80R22.5 16PR | |
