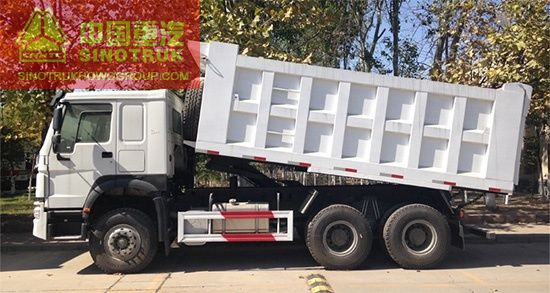

Truck Model

ZZ3257N3847A

Truck Brand

SINOTRUK –HOWO

Driving type

Left Hand driving

Dimension(Lx W xH)(unloaded)(mm)

8545x2550x3200

Cargo body size (L*W*H)

5800x2300x1600 21.344m3

Cargo body thickness(mm)

bottom:12mm, side:10mm

Lift type of Carriage

HYVA Brand Front Side

Approaching angle/Departure angle(°)

19/23

Overhang(front/rear) (mm)

1500/1870

Wheel base (mm)

3825+1350

Max speed(km/h)

75

Curb weight(kg)

12600

Loading Weight(kg)

25000

Fuel tanker capacity(L)

300L with locking fuel cap

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Model

WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling

Horse Power, max(kw/rpm)

336HP,247KW/2200

Emission

EURO II

Fuel Type

Diesel

Transmission

Model

HW19712,12 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

8118 hydraulic steering with power assistance

Ratio:22.2-26.2

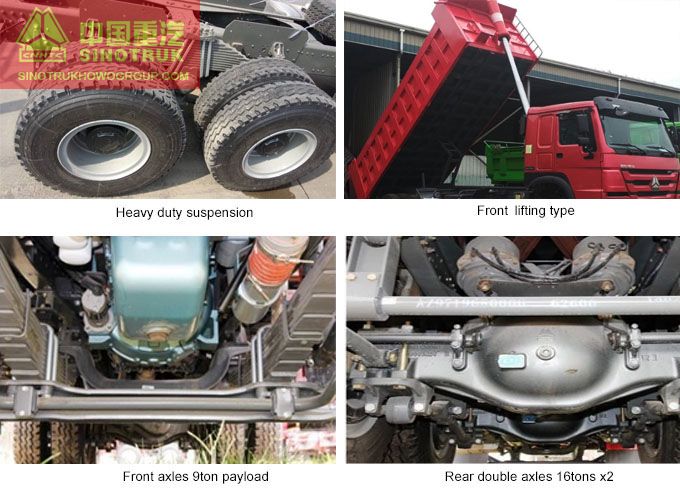

Front axle

HF9 , Steering with double T-cross section beam

Loading capacity:9000KG

Rear axle

HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels

Loading capacity: 16000kg

Color

Optional

Tire

12.00R20 Steel tires

10+1 spare

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.

Cab

HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

Instrument Panel

Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging
