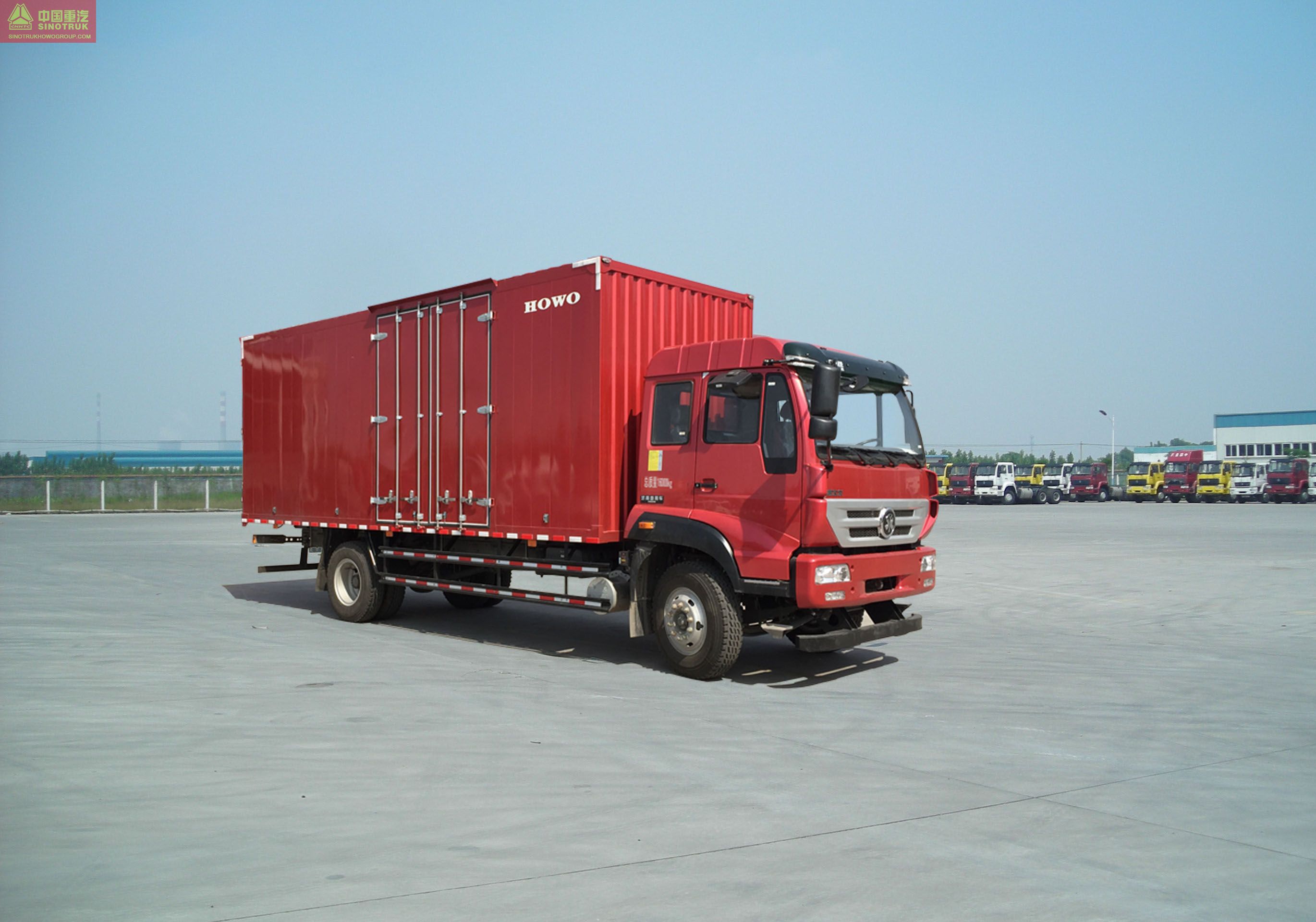

STEYR-M5G Series ZZ5111XXYG471GE1 Box truck chassis
- Release time：
- Source：Sinotruk HOWO
As a mature product of CNHTC, this vehicle is superior in power, low in fuel consumption, stable and reliable in performance, and has a variety of personalized configuration options; the cab is beautiful and elegant, safe and comfortable. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | 6235 | |
| Full Loaded Mass (kg) | 10860 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 8495 |
| Width (mm) | 2550 | ||
| Height (mm) | 3980 | ||
| Wheel Base (mm) | 4700 | ||
| Min. Ground Clearance (mm) | 260 | ||
| Performance Parameter | Max. Speed (km/h) | 95 | |
| Economic Speed (km/h) | 60～80 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 19 | ||
| Engine | Model | MC05.16-50 MC05.18-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 610/1300-1700 700/1400 | |
| Transmission | HW90510C | |
| Clutch（mm） | 395 | |
| Rear Axle Type | H153 | |
| Rear Axle Ratio | 4.444、4.875、5.143、5.571 | |
| Fuel Tank (L) | 200 | |
| Frame Section（mm） | 250 | |
| Suspension (Front/Rear Spring) | 3/4,3/5,3/9+8,11/9+8,9/12+9 | |
| Tire | 8.25R20,9.00R20 12PR | |
