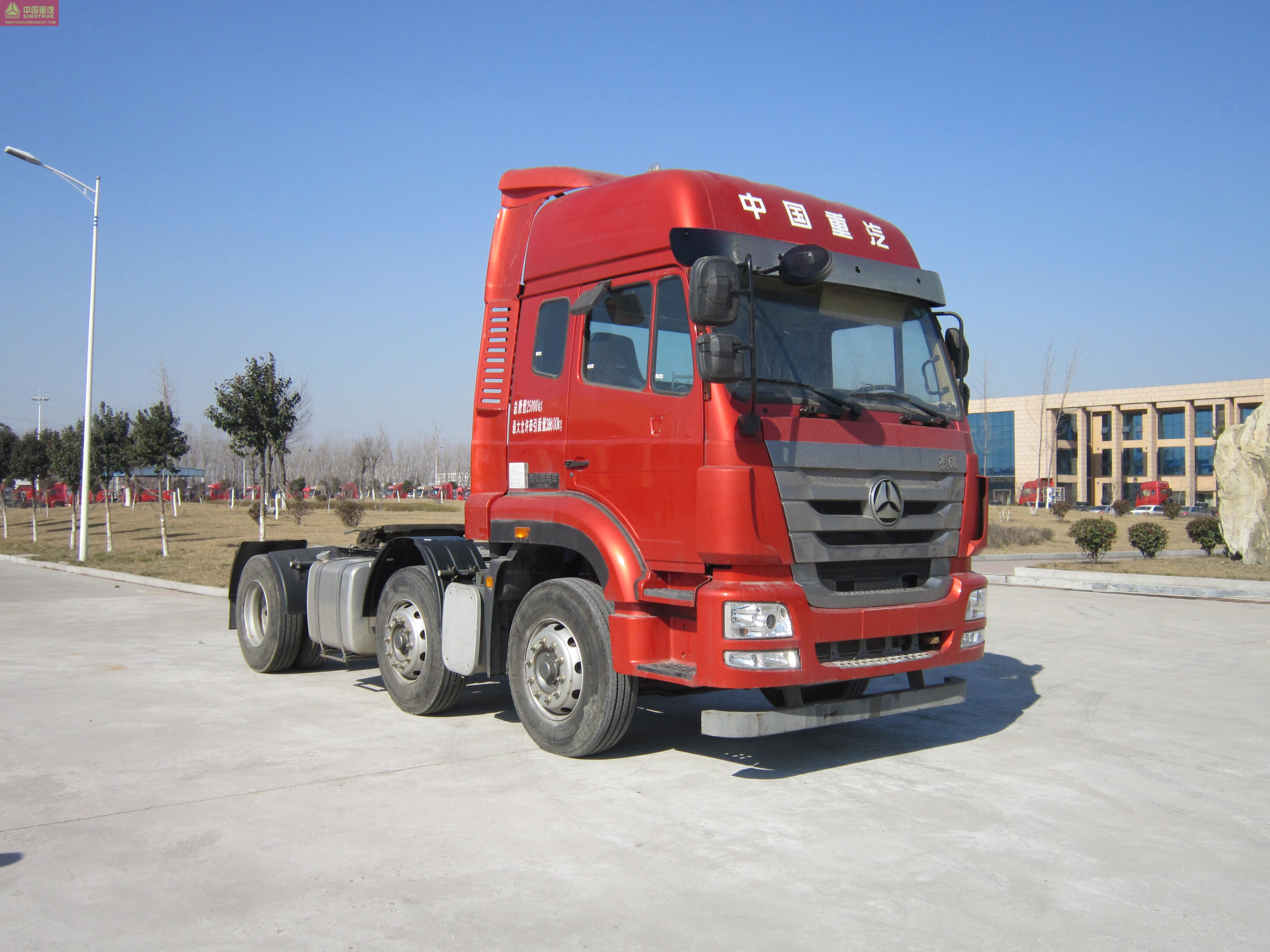

HOWO-G5X Series ZZ4255N27CWE1 Tractor truck
- Release time：
- Source：Sinotruk HOWO
The Hohan series tractors feature strong power, low fuel consumption, stable and reliable performance, light weight, and offer a variety of personalized configuration options. The newly designed "Hohan" cab is luxurious, elegant, safe and comfortable. For different application environments, our company adopts all-new optimization and matching methods, to fully meet the needs of different users. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | 7000 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | 38800 | ||
| Dimension Parameter | External Size | Length (mm) | 6980 |
| Width (mm) | 2510 | ||
| Height (mm) | 3140,3540,3820 | ||
| Wheel Base (mm) | 1800+2700 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | ||
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 15.5 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100-1400,1700/1100-1400,1760/1100-1400 | |
| Transmission | HW19712CL | |
| Clutch（mm） | Heavy duty model B, model 21 | |
| Rear Axle Type | MCY13 | |
| Rear Axle Ratio | ||
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 270*85*10 | |
| Suspension (Front/Rear Spring) | 2/2/-,2/2/4,2/2/9+6,3/3/-,3/3/4,3/3/9+6,4/4/-,4/4/5,4/4/9+6,9/9/9+6,左14右13/左14右13/9+6 | |
| Tire | 11.00R20,12.00R20,12R22.5,295/80R22.5,315/80R22.5 | |
