4x2 HOWO Light Truck series
- Release time：
- Source：Sinotruk HOWO

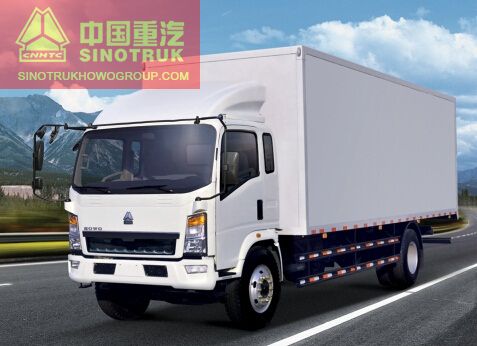

HOWO Light Truck(4x2 Rigid)
Rated Payload 4T CY4102 YN4102
| Dimensions (mm) | |||||
| Vehicle Model | ZZ1047D3414C145 | ZZ1047D3614C145 | ZZ1047D3615C145/ ZZ1047D3815D145 |
||
| Cab width | 1880 | 1880 | 2080 | ||
| L1 Wheelbase | 3360 | 3600 | 3600/3800 | ||
| L2Front overhang | 1160 | 1160 | 1160 | ||
| L4Rear overhang | 1375 | 1650 | 1650/1850 | ||
| L6 Centre line of front axle to back of cab | - without sleeper | 481 | 481 | 481 | |
| - with sleeper | 781 | 781 | 781 | ||
| B1 Frontwheel track | 1605 | 1605 | 1605,1805 | ||
| B3 Rear wheel track | 1540 | 1540 | 1540 | ||
| L Chassis length | 5895 | 6410 | 6410/6810 | ||
| B2 Chassis width | 1980 | 1980 | 2180 | ||
| H1 Chassis height without air spoiler | 2350 | 2350 | 2350 | ||
| Overall length with cargo box | 5995 | 6595 | 6595/6995 | ||
| Overall width with cargo box | 1980,2000,2150 | 2000,2150 | 2180 | ||
| Overall height with cargo box | 2900,3000,3100 | 2450 | 2450 | ||
| H2Frame height | - laden | 730 | 730 | 730 | |
| - unladen | 807 | 807 | 807 | ||
| L5Recommendedinside body sizes |
length | - without sleeper | 4200 | 4750 | 4750/5150 |
| - with sleeper | 3850 | 4400 | 4400/4850 | ||
| width | 1810,1900/2050 | 1900,2050 | 2050 | ||
| height | 400 | 500 | 500/550 | ||
| Weights (kg) | |||
| Gross vehicle weight (GVW) | 6495 | 6495 | 6495/6510 |
| Complete vehicle kerbweight | 2430 | 2440 | 2465/2475 |
| Chassis kerbweight | 2165 | 2175 | 2200/2210 |
| Performance | |||
| Maximum speed (km/h) | 104 | 104 | 104 |
| Maximum gradeability (%) | 35 | 35 | 35 |
| Minimum turning diameter (mm) | 14 | 14.8 | 14.8/15.5 |
| Minimum ground clearance (mm) | 210 | 210 | 210 |
| Fuel Consumption (L/100km) | 13~17 | ||
| Engine- EuroⅡ | |||||
| Parameters | Features | ||||
| Model CY4102BZLQ, 4-cylinder in-line, 3.856litre, diesel Rated power:120PS@2800rpm; Maximum torque:343 Nm@1600~1800 rpm YN4102QBZL, 4-cylinder in-line, 3.760litre, diesel Rated power: 115PS@3000rpm; Maximum torque:330 Nm@1600~2000 rpm |
Turbo-charging and Intercooling Electriccontrolflameout Electric heating for intake air Options: Air dryer Exhaustbrake |
||||
| Clutch | Axles | Braking System | |||
| Φ300 diaphragm spring clutch, single plate |
Front1061, forging I-beam Drum brake |
TypeAir brake system | |||
| Service brake Dual-circuit air brake | |||||
| WLY6T46 6-speed manual controlgearbox Ratio: 1-6.3142-3.931 3-2.2624-1.393 5-1.00 6-0.788 R1-5.874 Maximum input torque: 450Nm Rated rotation speed: 2800rpm Centre distance: 115mm Main box : Single counter shaft all synchromesh |
Rear1061, pressed welding axle housing Drum brake Ratio: 5.83，5.375，4.875 |
Parking brake Spring energy brake | |||
| Auxiliary brakeExhaustbrake(Option) | |||||
| Suspension | Wheels &Tyres | ||||
| Front Semi-elliptical leaf springs with shock absorbers | Tyres All steel 7.50R16LT | ||||
| Wheels 6.00-16 | |||||
| Frame | |||||
| RearSemi-elliptical leaf springs with shock absorbers |
|||||
| Material High tensile steel | |||||
| Section 195 x 65 x6mm | |||||
| Fuel Tank | Frame width Front 770 / rear 800 for 1880 | ||||
| Steering System | Front 800 / rear 800 for 2080 | ||||
| General Equipment | |||||
| Power steering | Capacity 80 Liter | Fuel filter with water separator | |||
| Adjustable steering wheel | TypeAluminum,lockable | Sun visor | |||
| Exhaust System | Option 120 Liter | Roof flap | |||
| Electrical System | Reversebuzzle | ||||
| Battery main switch | |||||
| Heating & ventilation system | |||||
| Cylindrical muffler | Voltage 24 V | Radio+MP3 | |||
| Batteries2 x 12V,80Ah | Options: | ||||
| Alternator 28V/35A | Electric power window | ||||
| Starter 4.5KW | Air conditioner | ||||
| Options: | Anti-lock braking system(ABS) | ||||
| 100Ah batteries | Metallic paint (except white) | ||||
Cab dimensions(mm)
| Cab type | A | B | C | F | H | I | M | |||||||
| 1880 single sleeper | 1438 | 1096 | 275 | 870 | 1880 | 1933 | 360 | |||||||
| 1880 without sleeper | 1438 | 1096 | 275 | 1880 | 1653 | |||||||||
| 2080 single sleeper | 1438 | 1096 | 275 | 870 | 2080 | 1933 | 360 | |||||||
| 2080 without sleeper | 1438 | 1096 | 275 | 2080 | 1653 |
Notice: The manufacturer reserve the right to modify the design and equipments without prior notice ！
