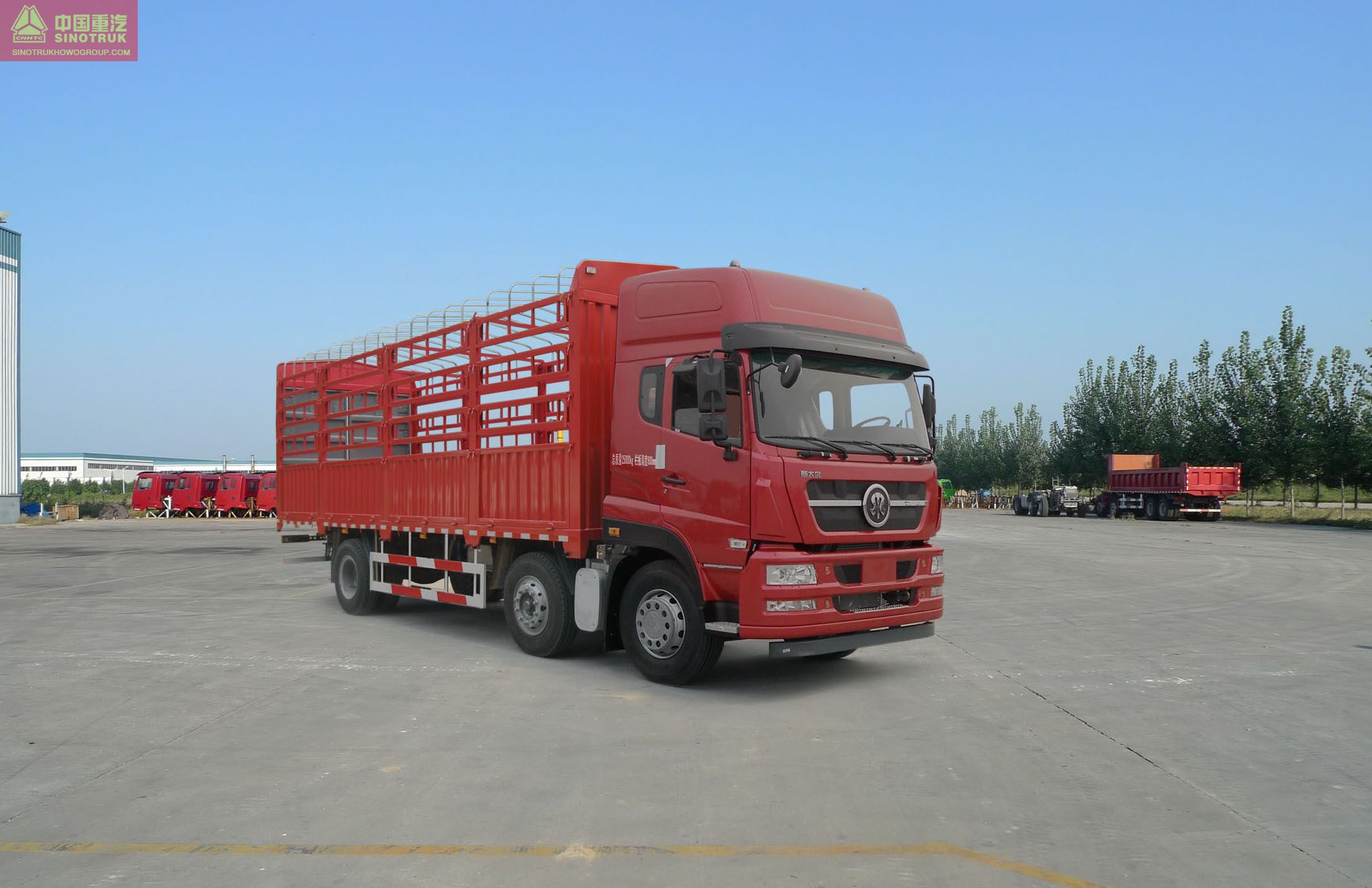

STEYR-M5G Series ZZ5253CCYM56CGE1 Stake truck
- Release time：
- Source：Sinotruk HOWO
As a mature product of CNHTC, this vehicle is superior in power, low in fuel consumption, stable and reliable in performance, and has a variety of personalized configuration options; the cab is beautiful and elegant, safe and comfortable. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | 10200 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 11990 |
| Width (mm) | 2496 | ||
| Height (mm) | 3980 | ||
| Wheel Base (mm) | 1800+5600 | ||
| Min. Ground Clearance (mm) | 260 | ||
| Performance Parameter | Max. Speed (km/h) | 101 | |
| Economic Speed (km/h) | 60～80 | ||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | |||
| Engine | Model | MC07.28-50 MC07.31-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 925/1200-1800 1100/1200-1800 | |
| Transmission | HW13710C2/HW13709XSTCL | |
| Clutch（mm） | ||
| Rear Axle Type | H457 | |
| Rear Axle Ratio | 4.444/4.875 | |
| Fuel Tank (L) | 300 | |
| Frame Section（mm） | 280 | |
| Suspension (Front/Rear Spring) | 11/11/10+9,3/3/10+9,3/3/5 | |
| Tire | 295/80R22.5,12R22.5,11.00R20 | |
