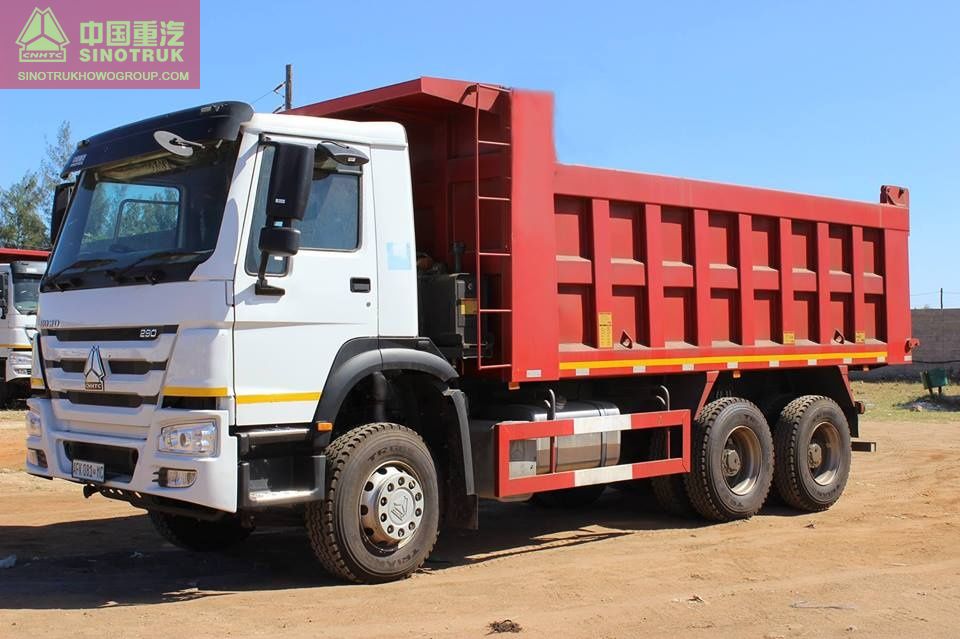

howo 10 wheel dump truck
- Release time：
- Source：Sinotruk HOWO
howo 10 wheel dump truck
|
Truck Mode |
ZZ3257M3841W |
|
|
Truck Brand |
SINOTRUK –HOWO |
|
|
Driving Type |
Left Hand Driving optional |
|
|
Dimension(Lx W xH)(unloaded)(mm) |
8545x2496x3450 |
|
|
Cargo body size (L*W*H) |
5600x2300x1120 |
|
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm |
|
|
Lift type |
Under-body Hydraulic Lifting |
|
|
Wheel base (mm) |
3825+1350 |
|
|
Max speed(km/h) |
80 |
|
|
Curb weight(kg) |
12190 |
|
|
Loading Weight(kg) |
12680 |
|
|
Fuel tanker capacity(L) |
300 |
|
|
Clutch |
Single-plate dry clutch Φ430mm |
|
|
Engine Model (Steyr technology, made in China) |
WD615.69 |
|
|
336HP |
||
|
EURO II |
||
|
Diesel |
||
|
Transmission |
HW19710,10 forwards and 2 reverse |
|
|
Steering system |
8118 |
|
|
Front axle |
HF9 |
|
|
Rear axle |
HC16 |
|
|
Color |
Optional |
|
|
Tire |
12.00R20 10+1 spare |
|
|
Cab |
HOWO76 single sleeper & air-condition |
|

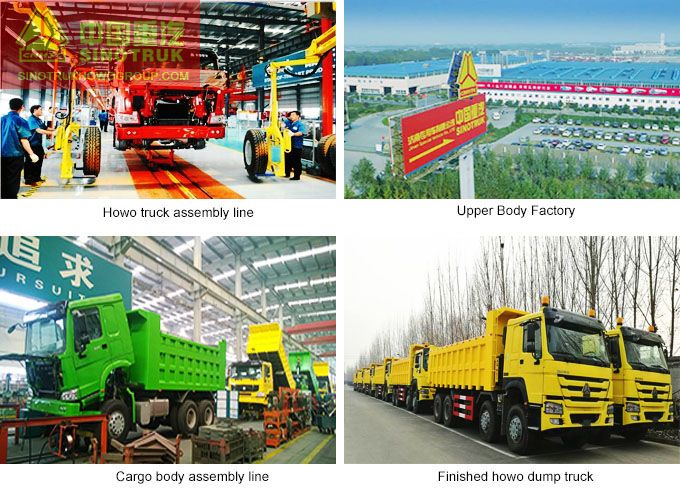

howo dump truck assembly line
3. howo dump truck body
