howo dump truck for sale
- Release time：
- Source：Sinotruk HOWO

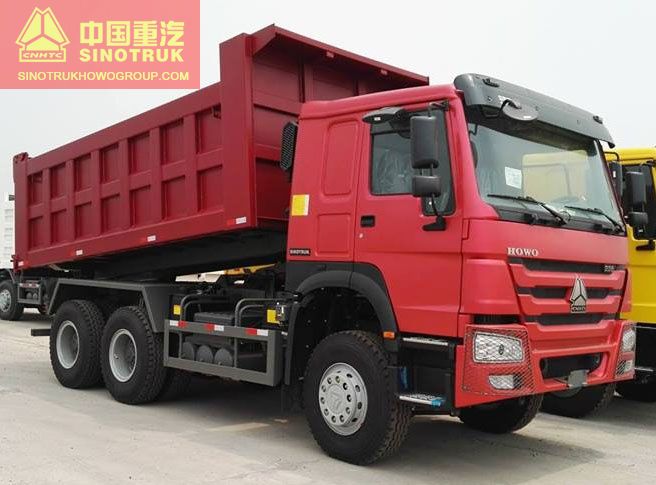

howo dump truck for sale
1. howo dump truck specification
| Truck Model | ZZ3257N3647A (LHD) | ||||||||
| Truck Type | SINOTRUCK HOWO dump truck | ||||||||
| Dimension(L*W*H)(unloaded)(mm) | 8214x2496x3386 | ||||||||
| Cargo body size(L*W*H,mm (mm) | 5400x2300x1400 | ||||||||
| Howo dump truck Cargo body thickness(mm) | bottom:4mm, side:3mm | ||||||||
| Lift type of Carriage | Ventral /Front lifting | ||||||||
| Approaching angle/Departure angle | 19/26 | ||||||||
| Overhang(front/rear)(mm) | 1500/1739 | ||||||||
| Wheel base(mm) | 3625+1350 | ||||||||
| Max speed(km/h) | 80 | ||||||||
| Curb weight(kg) | 11290 | ||||||||
| Loading weight(kg) | 30000 | ||||||||

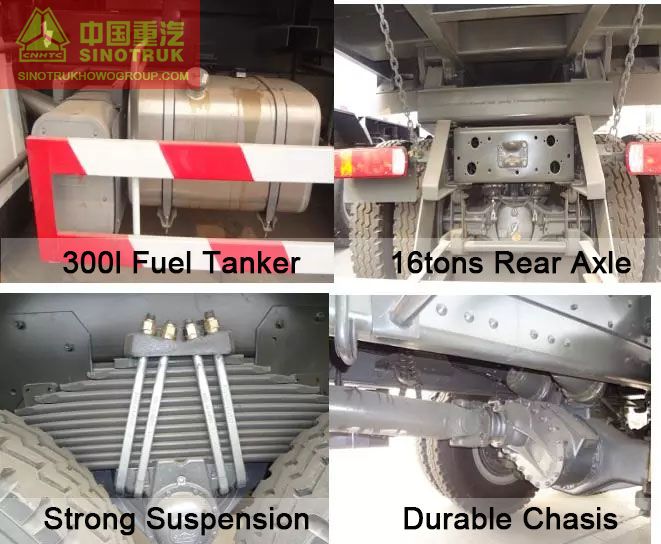

| Fuel tanker capacity(L) | 300L with locking fuel cap | ||||||||
| Howo dump truck Clutch | Single-plate dry clutch430mm | ||||||||
| Engine Model (Steyr technology, made in China) |
Model | WD615.47 | |||||||
| Horse Power, max(kw/rpw) | 371HP, 247/2200 | ||||||||
| Emission Standard | EUROII | ||||||||
| Transmission | Model | HW 19710, 10 forwards and 2 reverse | |||||||
| Howo dump truck Brake system | Service brake | Dual circuit compressed air brake | |||||||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||||||
| Auxiliary brake | Engine exhaust brake | ||||||||
| Steering system | Model | Zf 8098 hydraulic steering with power assistance | |||||||
| Front axle | Hf9, Steering with double T-cross section beam Loading capacity:9000KG | ||||||||
| Rear axle | Hc16, Casting axle housing | ||||||||
| Tire | 12.00 R20 11 pieces | ||||||||
| Electrical system | Operating vdtage | 24V, negative grounded | |||||||
| Starter | 24V,7.35KW | ||||||||
| Alternator | 28V, 1500W | ||||||||
| Batteries | 2*12V. 165Ah | ||||||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||||||
| Howo dump truck Cab | Hw76 cab, (one sleeper, with air- condition), | ||||||||

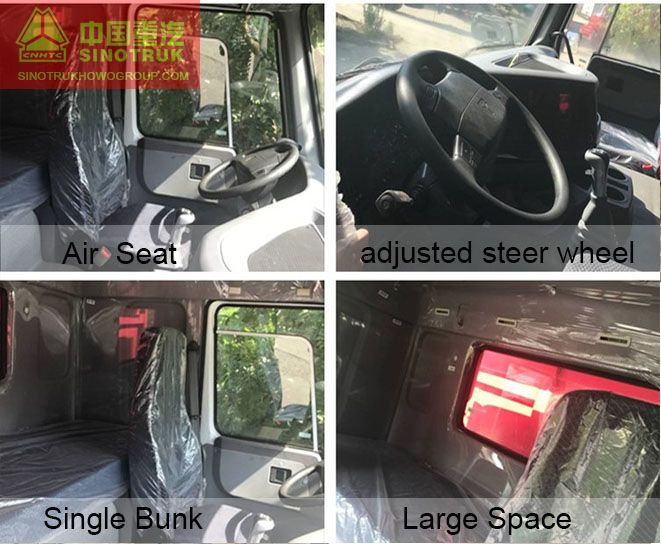

2. howo dump truck cabin
3. Strong howo dump truck body

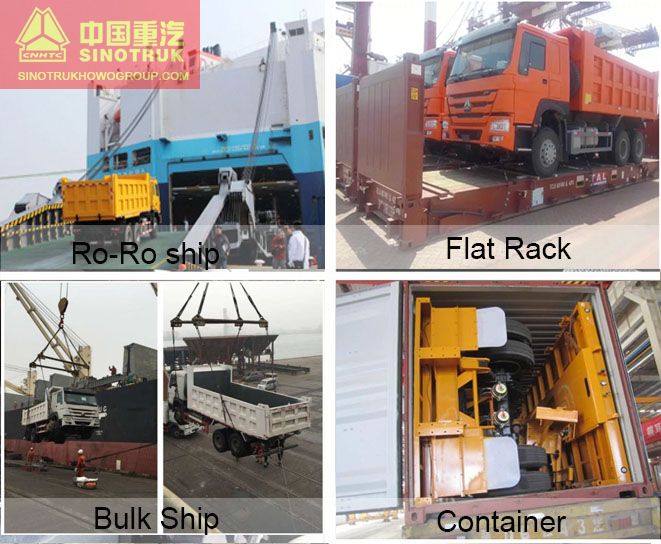

4. How to ship howo dump truck
