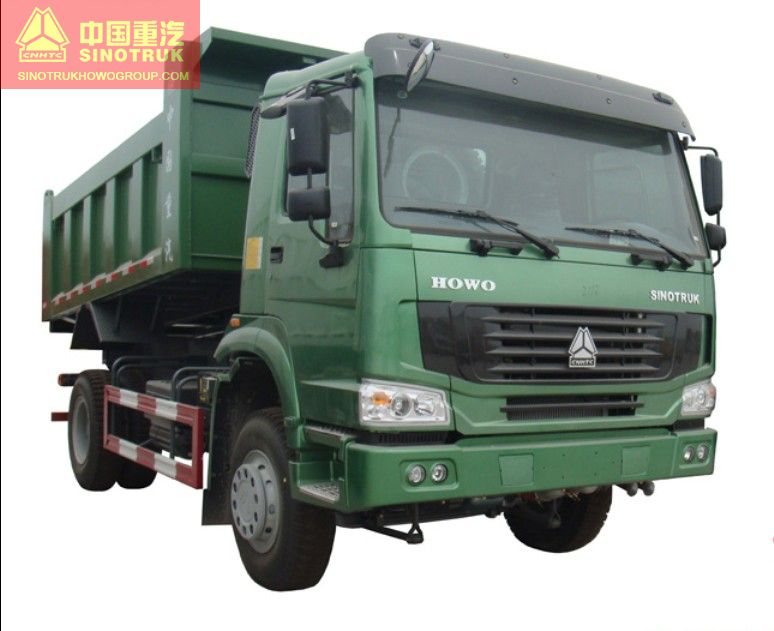

HOWO Tipper Truck 4x2
- Release time：
- Source：Sinotruk HOWO
| Model of Representative Vehicle | ZZ3167M3811 | ZZ3167M4611 | |
| Cab | Model | HW70 | |
| Type | Standard cab, no berth, up-down, front-rear adjustable steering wheel, VDO instrument and control module, double-locking safety belt, outer sun shade | ||
Engine |
Model | WD615.87 | WD615.87 |
| Rated Power kW/rpm | 213/2200 | 213/2200 | |
| Max. Torque Nm/rpm | 1160/1100-1600 | 1160/1100-1600 | |
| Discharge L | 9.726 | ||
| Type | In-line, six cylinders, two valves, rear supercharger, supercharging intercooling | ||
| Clutch | Φ430 diaphragm spring clutch, hydraulic control, air booster; WD615.62/WD615.87 standard configuration 430C, WD615.69 standard configuration 430B, WD615.47 standard configuration 430A. | ||
| Transmission | Sinotruk HW series 10-speed transmission; a primary gearbox + a secondary gearbox; primary gearbox: double countershafts; secondary gearbox: planetary reduction and power takeoff; WD615.62/WD615.87/WD615.69 standard configuration HW15710; WD615.47 standard configuration HW19710. | ||
| Front Axle | HF9 drum-type, rated load 9T | ||
| Drive Axle | HC16 double reduction (central reduction + hub reduction), speed ratio: standard configuration 5.73, optional configuration 4.8 | ||
| Suspension | Front/rear suspensions are plate springs;with shock absorber and transverse stabilizer | ||
| Steering System | ZF8098 steering gear, ZF steering pump, system pressure 18MPa | ||
| Braking System | Service brake: dual-circuit air brake; parking brake: energy storage spring air-break brake; auxiliary brake: engine exhaust brake; optional configuration engine EVB, ABS and automatic slack adjuster. | ||
| Electric System | Single wire system, minus earth; voltage: 24V; dynamo:1540W; starter: 7.5kW; storage battery: 2×12V/165Ah. | ||
| Tyre | 12.00R20; optional12.00R24 and 12.00-24 | ||
| Tank Capacity L | 300 | ||
| Curb Weight (Complete Vehicle/Chassis) kg | 7950/6500 | 8000/6780 | |
| Gross Mass kg | 16000 | 16000 | |
| Rated Load kg | 7920 | 7870 | |
| Complete Vehicle Dimensions (L*W*H) mm | 6980×2496×3150 | 8127×2496×3150 | |
| Chassis Dimensions (L*W*H) mm | 6500×2496×2958 | 7310×2496×2958 | |
| Wheel Base mm | 3800 | 4600 | |
| Front Overhang/Rear Overhang (Complete Vehicle/Chassis) mm | 1500/（16801200） | 1500/（2070/1210） | |
| Wheel Track (Front/Rear) mm | 2022/1850 | 2022/1850 | |
| Min. Ground Clearance mm | 314 | 314 | |
| Approach Angle/Departure Angle (Complete Vehicle/Chassis) ° | 19/(27/38) | 19/(22/38) | |
| Max. Speed km/h | 91 | 91 | |
| Max. Climbing Capacity % | 20 | 20 | |
| Min. Turning Diameter m | 15 | 17 | |
| Container Dimensions (L*W*H) mm | 4190×2300×800 | 5410×2300×800 | |
| Container Volume m3 | 7.7 | 9.9 | |
| Optional Height of Container Side Plate (Volume) | 800 | 800 | |
