Mining Truck Series ZZ5707V4048CJ Howo Mine King
- Release time：
- Source：Sinotruk HOWO

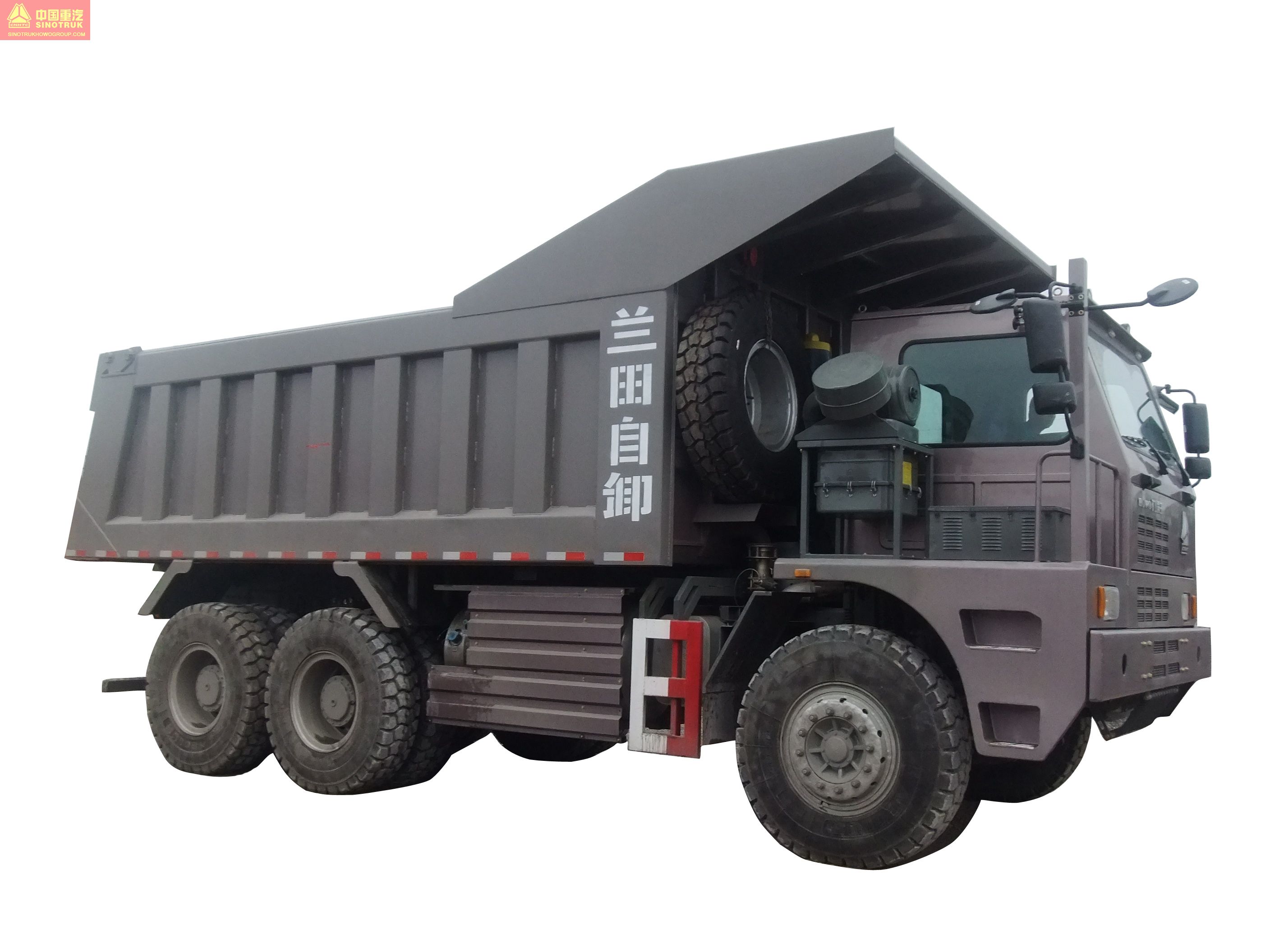

The Howo Mine King dump truck is an all new type of off-road vehicle developed by CNHTC for use in various harsh environments such as open-pit mines, steel mills, hydroelectric construction sites, and wharfs.
| Weight Parameter | Curb Mass (kg) | 28500 | |
| Full Loaded Mass (kg) | 70000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 9000 |
| Width (mm) | 3300 | ||
| Height (mm) | 4100 | ||
| Wheel Base (mm) | 4000+1500 | ||
| Min. Ground Clearance (mm) | 340 | ||
| Performance Parameter | Max. Speed (km/h) | 56.700000000000003 | |
| Economic Speed (km/h) | 42.5 | ||
| Max. Grade Ability (%) | 39.600000000000001 | ||
| Min. Turning Diameter (m) | 20 | ||
| Engine | Model | T12.42-30 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1820/1200～1500 | |
| Transmission | HW21712 | |
| Clutch（mm） | CH430-21 | |
| Rear Axle Type | AC26 | |
| Rear Axle Ratio | 8.51/10.47 | |
| Fuel Tank (L) | 450 | |
| Frame Section（mm） | 380×120×10 | |
| Suspension (Front/Rear Spring) | 18×12/25×15 | |
| Tire | 14.00-25，14.00R25 | |
