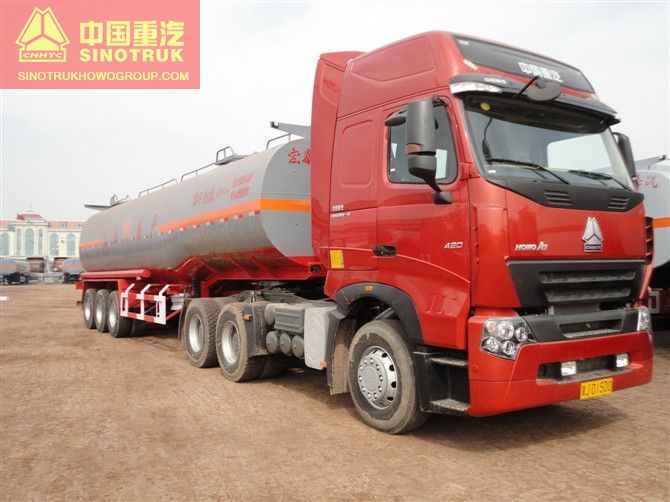

Fuel and Oil Tanker Semi-trailer
- Release time：
- Source：Sinotruk HOWO
| Fuel and Oil Tanker Semi-trailer Main information | |
| Tank Body | |
| Shape | Optional ( Round or Square) |
| Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
| Tare weight | About 8000KGS-12800KGS |
| Total Volume（m3） | 25m3-60 m3 |
| Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
| End Plate | 5mm or 6mm /Q235 carbon steel |
| Manhole Cover | Carbon steel or Aluminum alloy API manhole cover, ∮500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4” rubber hose, 2pcs, 6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis | |
| Main Beams | Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST (D200T）or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type /air suspension |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; 2 pieces of 45L air tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
