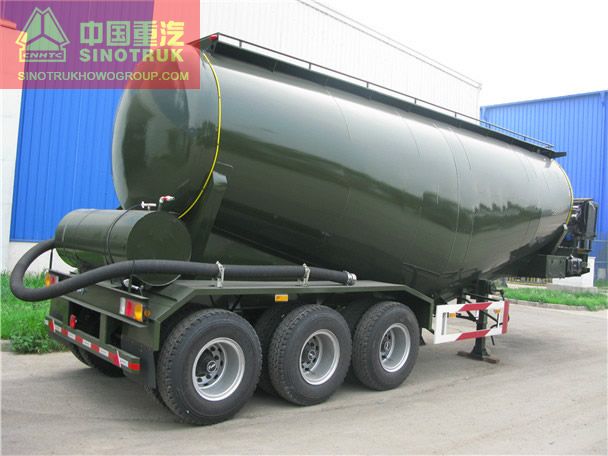

Cement Tanker Semi Trailer
- Release time:
- Source:Sinotruk HOWO
Dimension:12980x2500x3980mm
Volume:55 CBM
Axle Brand:Standard 13 ton FUWA axles
Tire Type:12R22.5/12pieces

|
Model |
Cement Tanker Semi Trailer |
|
Dimension |
12980x2500x3980mm |
|
Payload |
28Tons |
|
Volume |
55 CBM |
|
Axle Brand |
Standard 13 ton FUWA axles |
|
Axle Number |
3 |
|
Suspension system |
Leaf Spring suspension |
|
main beam |
The height of the beam is 500 mm, upper plate is16mm,
down plate is18mm,middle plate is 10mm.
|
|
Tank thickness |
4mm |
|
Channel beam |
4mm |
|
Tire Type |
12R22.5/12pieces |
|
King Pin |
90# or 50# |
|
diesel engine |
Standard extraposition4102 |
|
Steel rim |
8 pieces |
|
Landing Gear |
Standard single 28ton |
|
air compressor |
Standard 12 CBM |
|
Brake system |
Dual Line braking system |
|
Brake block |
3 pieces ,dilated |
|
Brake air chamber |
Six double air chamber |
|
Electrical system |
1. Voltage: 24v2. Receptacle: 7 ways (7 wire harness) |
|
Others |
Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable |
