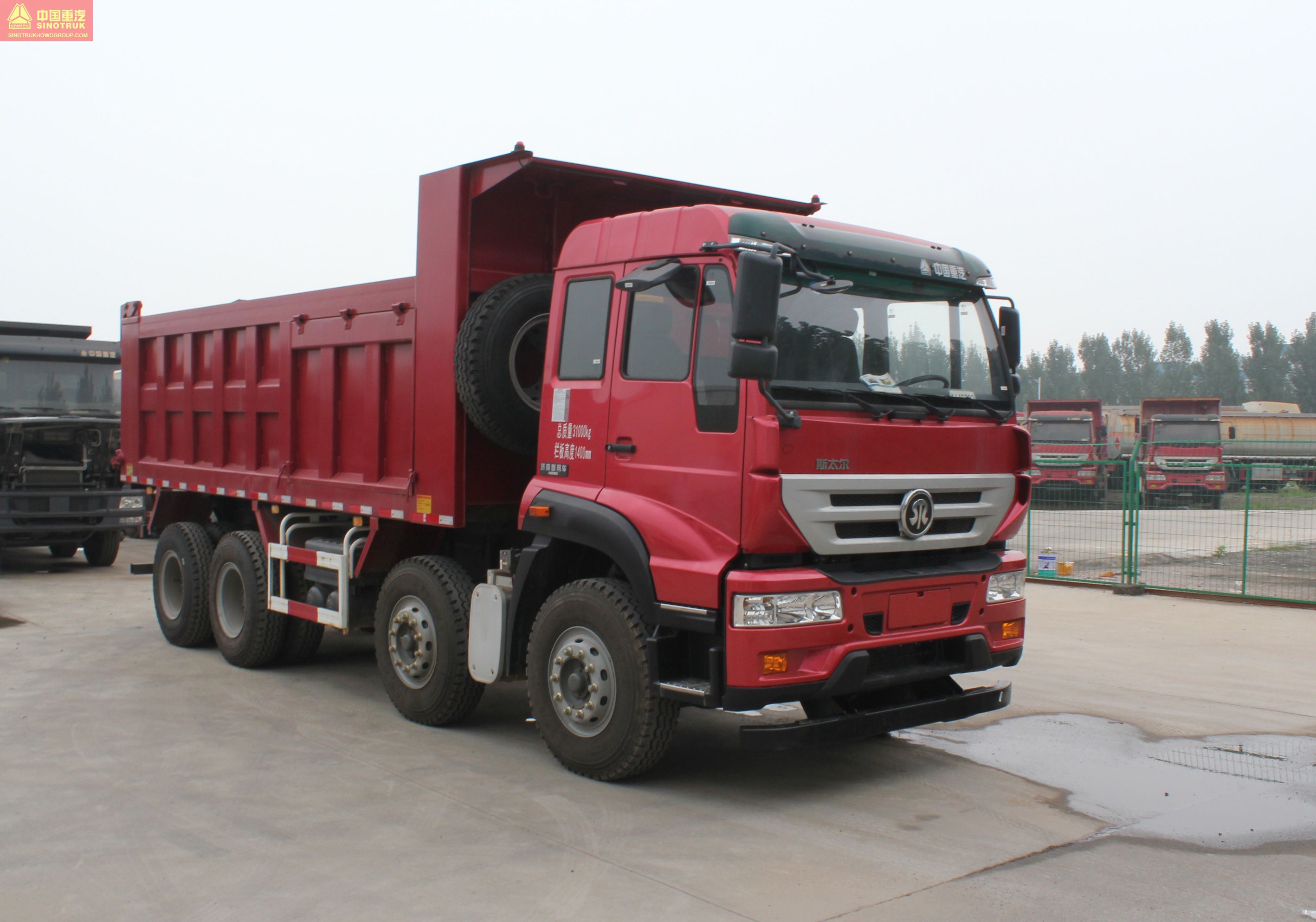

STEYR-M5G Series ZZ3311N276GE1 Dump truck
- Release time：
- Source：Sinotruk HOWO
This type 2 chassis is used for dumper retrofit, featuring strong power, reliablie and stable performance and enjoying high recognition in the market. It can satisfy the requirements for use in harsh environments such as construction sites and mining areas, with a rational structure fit for the retrofit of and use by various kinds of dump trucks.
| Weight Parameter | Curb Mass (kg) | 14820 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 8620 |
| Width (mm) | 2490 | ||
| Height (mm) | 3450 | ||
| Wheel Base (mm) | 1800+2700+1350 | ||
| Min. Ground Clearance (mm) | 260 | ||
| Performance Parameter | Max. Speed (km/h) | 82 | |
| Economic Speed (km/h) | 40～60 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 21 | ||
| Engine | Model | MC07.31-50 MC07.34-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1230/1200-1800 1250/1200-1800 | |
| Transmission | HW13710C2 | |
| Clutch（mm） | 430 | |
| Rear Axle Type | H457 | |
| Rear Axle Ratio | 4.444、4.875、5.286、5.833 | |
| Fuel Tank (L) | 300 | |
| Frame Section（mm） | 280/300 | |
| Suspension (Front/Rear Spring) | 9/9/10,12/12/10,9/9/-,12/12/- | |
| Tire | 11.00R20,12.00R20R,12R22.5,295/80R22.5,315/80R22.5 | |
