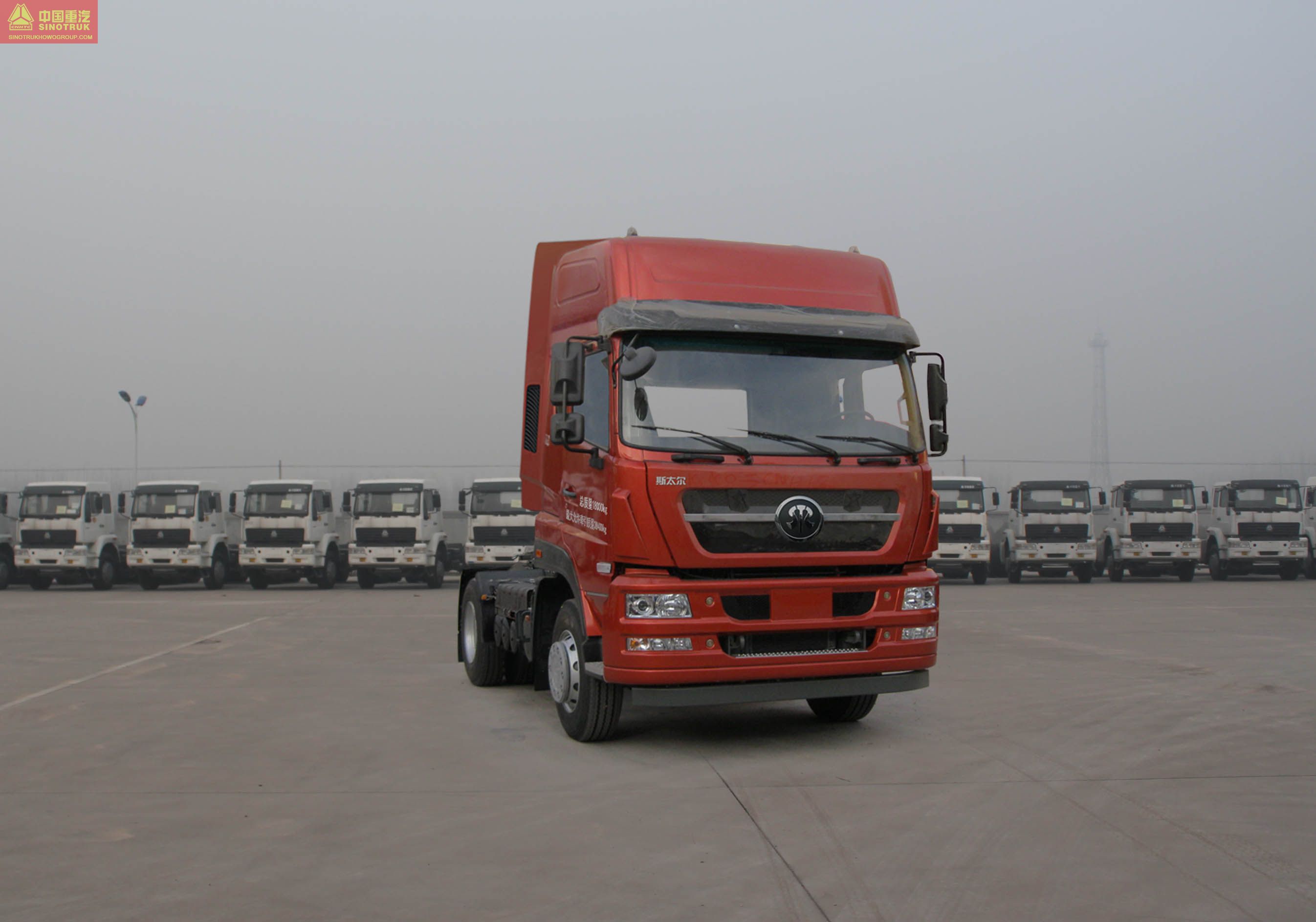

STEYR-M5G Series ZZ4183N361GE1 Dangerous goods tractor
- Release time:
- Source:Sinotruk HOWO

As a mature product of CNHTC, this vehicle is superior in power, low in fuel consumption, stable and reliable in performance, and has a variety of personalized configuration options; the cab is beautiful and elegant, safe and comfortable. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | 6300 | |
| Full Loaded Mass (kg) | 18000 | ||
| Rated Towing Mass (kg) | 34100,35500 | ||
| Dimension Parameter | External Size | Length (mm) | 5995 |
| Width (mm) | 2496 | ||
| Height (mm) | 3040,3600,3700,3765 | ||
| Wheel Base (mm) | 3600 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | ||
| Economic Speed (km/h) | 60~80 | ||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | |||
| Engine | Model | MC07.28-50 MC07.31-50 MC07.34-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1100/1200-1800 1230/1200-1800 1250/1200-1800 | |
| Transmission | HW13710/HW13709XSTL/HW19712 | |
| Clutch(mm) | ||
| Rear Axle Type | HT457/MCY13 | |
| Rear Axle Ratio | 4.111/4.444/4.875//3.7/4.11/4.63 | |
| Fuel Tank (L) | 400 | |
| Frame Section(mm) | 270 | |
| Suspension (Front/Rear Spring) | 3/5,3/10+9,11/5,11/10+9 | |
| Tire | 295/80R22.5,12R22.5,11.00R20 | |
