howo a7 420 tractor head
- Release time：
- Source：Sinotruk HOWO

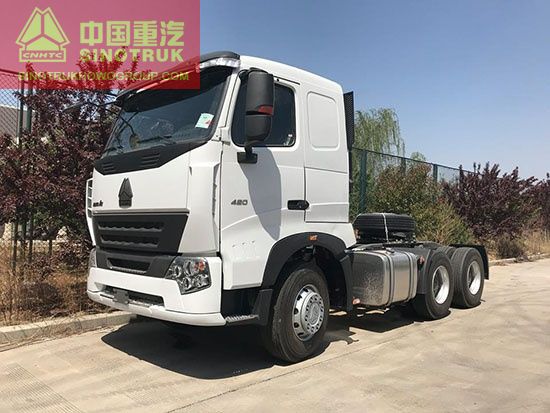

howo a7 420 tractor head
1.High Security :The key parts adopt the world's top products
2.Top configuration : Dismal brakes +EVB,ABS+ASR+EBL+TPM, More Powerful electronic management system.
3. High Quality: CNHTC's base on Strong technical support and top level technology
|
VEHICLE SPECIFICATION |
DESCRIPTION |
|
|
Truck Model |
ZZ4257V3247 |
|
|
Type of Vehicle |
TRACTOR TRUCK |
|
|
Truck Brand |
SINOTRUK—HOWO A7 |
|
|
Driving Position |
Left hand Driving |
|
|
Fuel tanker capacity(L) |
400 |
|
|
The Total Mass |
50,000kg |
|
|
Dead Weight |
8800 |
|
|
Max speed(km/h)(km/h) |
102 |
|
|
Color |
Optional |
|
|
Chassis & Add Components |
||
|
Frame Details |
High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sub-frame, all cold riveted cross members. |
|
|
Dimension(Lx W xH)(unloaded)(mm) |
6985x2496x3850 |
|
|
Approaching angle/Departure angle(°) |
15/46 |
|
|
Overhang(front/rear) (mm) |
1540/870 |
|
|
Wheel base (mm) |
3225+1350 |
|
|
Engine |
||
|
Model |
D12.42 |
|
|
Power |
420hp/309kw.2000r/min |
|
|
Emission |
EURO II |
|
|
Displacement(L) |
11.726 |
|
|
Type |
water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
|
|
Kind of Fuel |
Diesel |
|
|
Clutch & Gear Box System |
||
|
Clutch |
SINOTRUKΦ430mm diaphragm spring clutch |
|
|
Gear Box |
10 forwards and 2 reverse |
|
|
Axles |
||
|
Front Axle Model |
HF7 axle. Capacity: 7000kg |
|
|
Rear Axle |
ST16 axle. Capacity:2X 13000kg |
|
|
Electrical System |
||
|
Battery |
2X12V/165Ah |
|
|
Alternator |
28V-1500w |
|
|
Starter |
7.5Kw/24V |
|
|
Brake System |
||
|
Service brake |
Dual circuit compressed air brake |
|
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
||
|
Model |
ZF8098 |
|
|
Type |
hydraulic steering with power assistance |
|
|
Wheels & Tyres |
||
|
Type |
12R22.5 |
|
|
Material |
Tubeless tires |
|
|
Quantity |
10+1 spare |
|
|
Kin pin |
50mm or 90mm |
|
|
Cabin |
||
|
Type |
A7-G |
|
|
(high floor with lengthening cabin)double sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc. |
||
