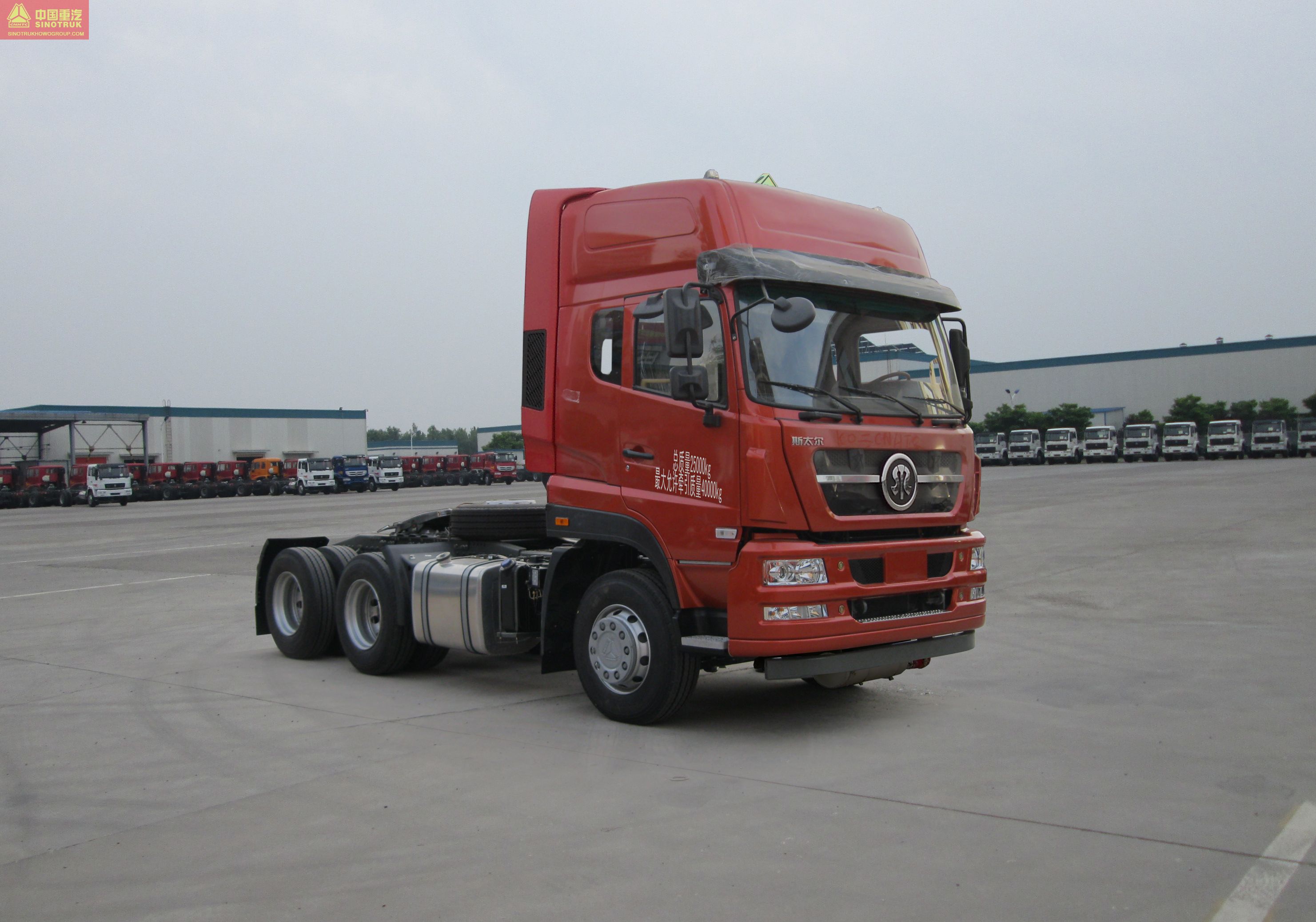

STYER-D7B Series ZZ4253N3241D1HN Tractor truck
- Release time：
- Source：Sinotruk HOWO
A mature product of CNHTC, this vehicle features a reliable structure, high carrying capacity, excellent power and stable performance, fit for different road uses. With an elegant, safe and comfortable cab, it is suitable for long-distance highway and expressway transport.
| Weight Parameter | Curb Mass (kg) | 8800 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | 40000 | ||
| Dimension Parameter | External Size | Length (mm) | 6800 |
| Width (mm) | 2496 | ||
| Height (mm) | 3225,3765,3875 | ||
| Wheel Base (mm) | 3225+1350,3200+1400 | ||
| Min. Ground Clearance (mm) | 260 | ||
| Performance Parameter | Max. Speed (km/h) | 101 | |
| Economic Speed (km/h) | 80 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 15 | ||
| Engine | Model | D10.34-50 D10.38-50 T12.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 247/1900 274/2000 275/2000 | |
| Transmission | HW19712 | |
| Clutch（mm） | CH430-21 | |
| Rear Axle Type | MCY13Q | |
| Rear Axle Ratio | ||
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 270 | |
| Suspension (Front/Rear Spring) | 3/5,3/12,3/-,3/2+-,9/12 | |
| Tire | 11.00R20 16PR,12.00R20 14PR,12R22.5 16PR,295/80R22.5 16PR,315/80R22.5 16PR | |
