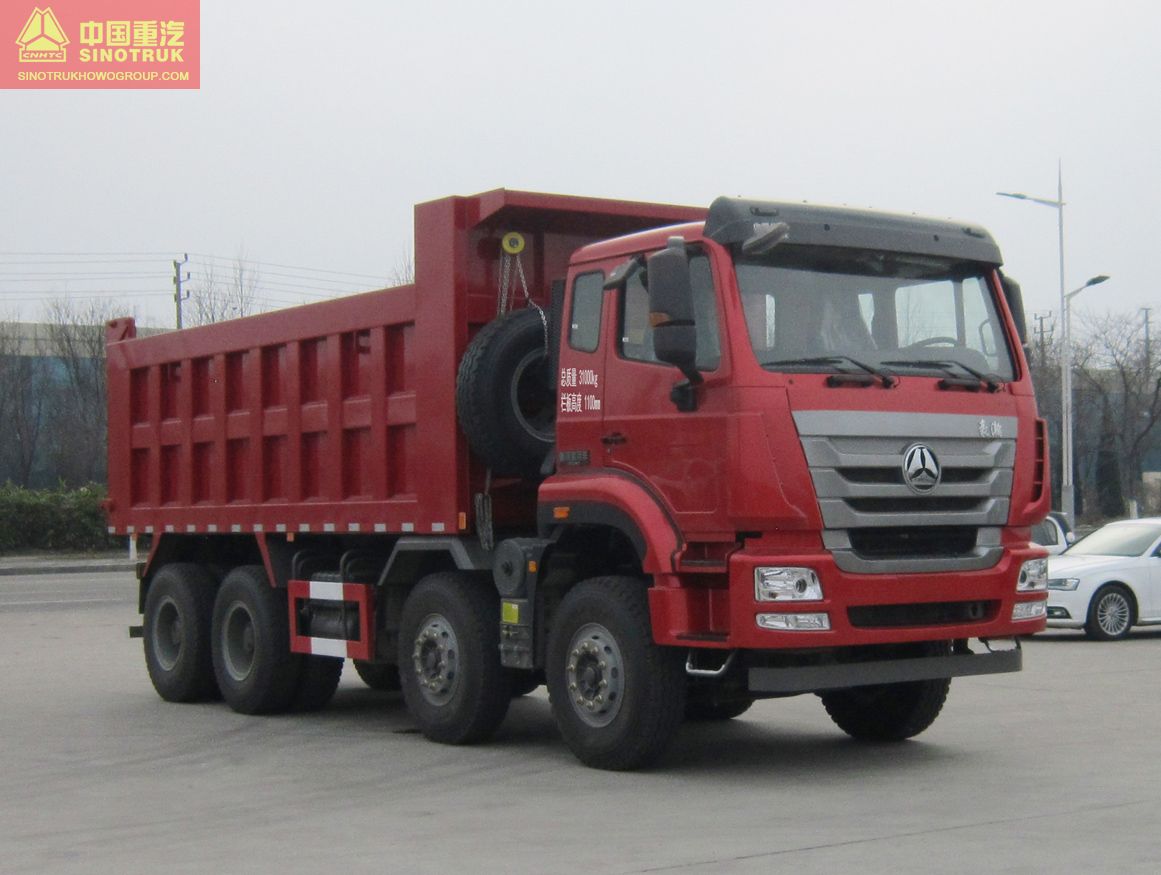

HOWO-G5X Series ZZ3315N286WE1 Dump truck
- Release time：
- Source：Sinotruk HOWO
The Hohan series dump trucks feature reliable structure, high carrying capacity, strong power, stable performance, and enjoy high recognition in the market. They can meet the requirements for use in construction sites, mining areas and other harsh environments, suitable for short-distance
| Weight Parameter | Curb Mass (kg) | 14830 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 8980,9180 |
| Width (mm) | 2550 | ||
| Height (mm) | 2800,3550 | ||
| Wheel Base (mm) | 1800+2800+1350,1800+2775+1400 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 75 | |
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 23.199999999999999 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100-1400,1700/1100-1400,1760/1100-1400 | |
| Transmission | HW19710、HW19712 | |
| Clutch（mm） | Heavy duty model B, model 21 | |
| Rear Axle Type | H457casting 、AC16 | |
| Rear Axle Ratio | 4.875、5.45 | |
| Fuel Tank (L) | 260 | |
| Frame Section（mm） | 300*80*（8+5）、300*80*(8+8) | |
| Suspension (Front/Rear Spring) | 4/4/-,4/4/5,4/4/12,11/11/-,11/11/12,左14右13/左14右13/12 | |
| Tire | 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR,315/80R22.5 18PR | |
