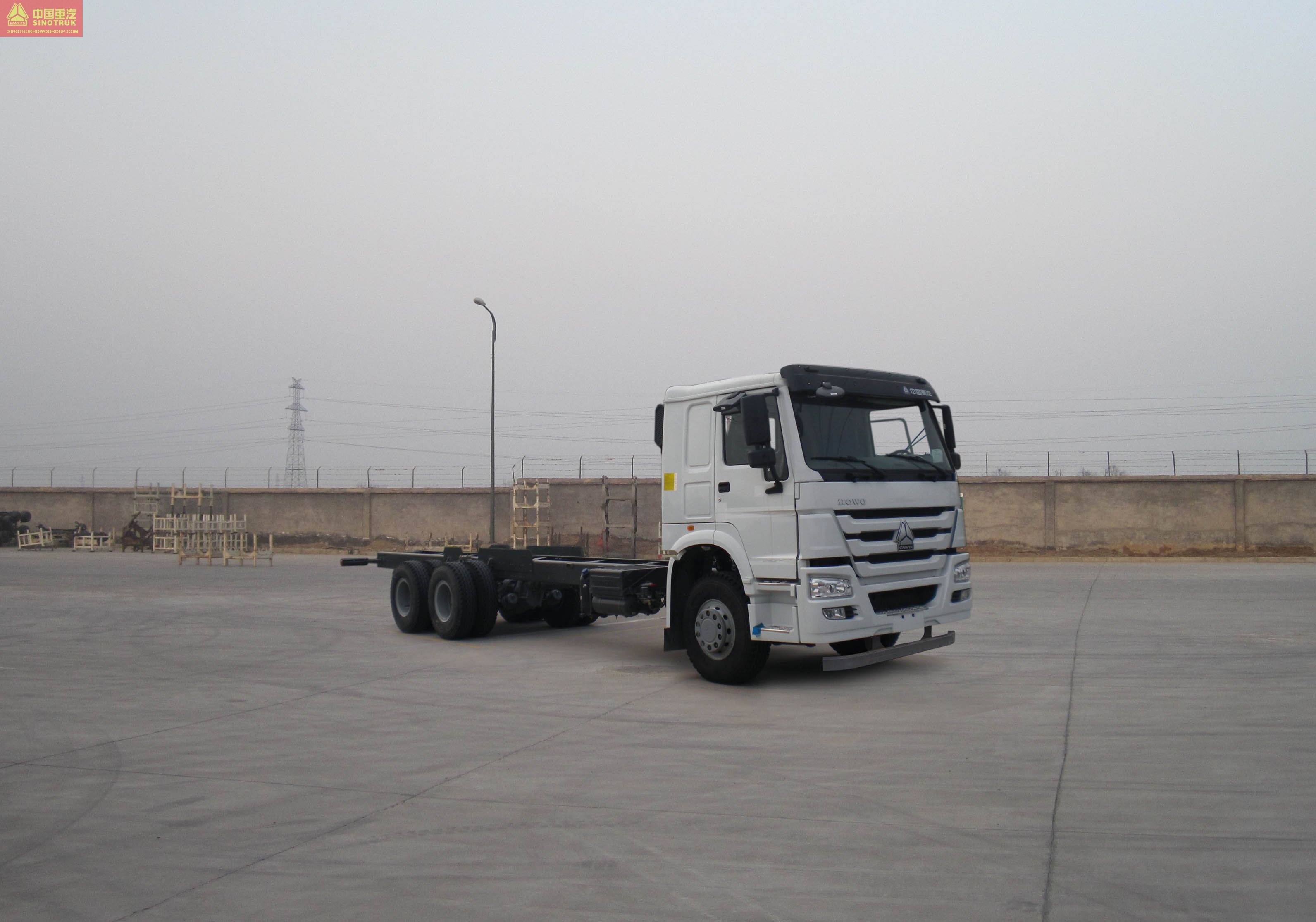

HOWO Series ZZ1257N5847E1 Cargo truck chassis
- Release time：
- Source：Sinotruk HOWO
Type 2 chassis, used for the retrofit of fire engines, wrecker trucks, oil field operation vehicles, cranes, concrete pump trucks, etc. With a proper structure and superior performance, it can meet the retrofit and use of various kinds of special purpose vehicles.
| Weight Parameter | Curb Mass (kg) | 9560 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 10855 |
| Width (mm) | 2496 | ||
| Height (mm) | 3125,3730 | ||
| Wheel Base (mm) | 5225+1350,5200+1400 | ||
| Min. Ground Clearance (mm) | 314 | ||
| Performance Parameter | Max. Speed (km/h) | ||
| Economic Speed (km/h) | 65～88 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 21 | ||
| Engine | Model | D10.28-50D10.31-50D10.34-50D10.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1190/1200～1500 1390/1200～1500 1490/1200～1500 1560/1200～1500 | |
| Transmission | HW19710CL | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY13Q | |
| Rear Axle Ratio | 3.08 3.36 3.7 4.11 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 300×80×8 | |
| Suspension (Front/Rear Spring) | 10/12,4/12,4/5,10/-,4/- | |
| Tire | 315/80R22.5 18PR/315/80R22.5 14PR,295/80R22.5 18PR/295/80R22.5 16PR,12R22.5 18PR/12R22.5 16PR,12.00R20 16PR/12.00R20 14PR,11.00R20 18PR/11.00R20 16PR,12.00-20 16PR,11.00-20 | |
