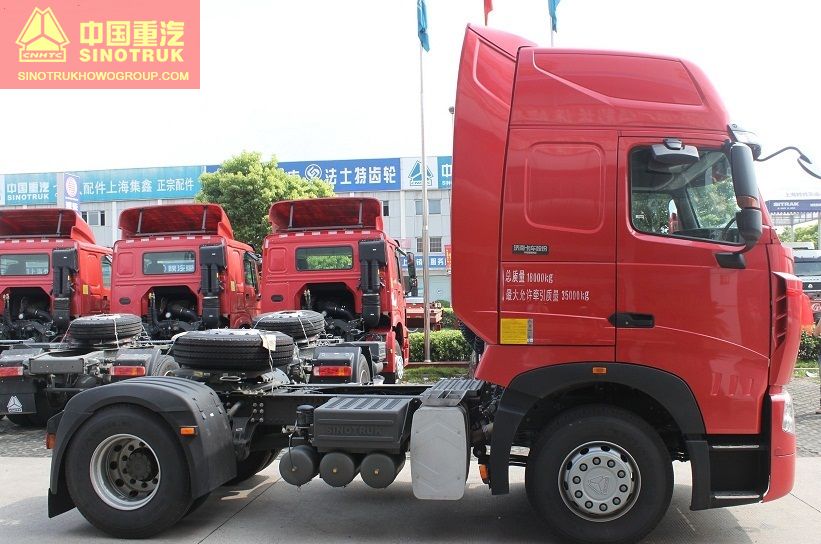

HOWO T7H Tractor Truck 4X2
- Release time：
- Source：Sinotruk HOWO
[HOWO-T7H] ZZ4187N361MD1H
The C7H is a new generation high-end high truck with lofty buildup inherited from the MAN assembly that dominates the road, with the engine force, stability, fuel efficiency and riding comfort at the world level. It is safe, reliable and smart as much as all of its peers in the world market, with the additional featured options for customization, making it a perfect choice for the medium and highly organized major transportation tasks and high-end logistics.
Technical Parameters
| Mass Parameter | Curb Weight（kg） | 7100 | |
| Fully-Loaded Mass（kg） | 18000 | ||
| Towable Mass（kg） | 34700 | ||
| Dimensions | Overall Dimensions | Length（mm） | 6245 |
| Width（mm） | 2496 | ||
| Height（mm） | 3060,3440,3620,3730 | ||
| Wheel Base（mm） | 3600 | ||
| Minimum Ground Clearance（mm） | 227 | ||
| Performance Parameters | Maximum Speed（km/h） | 101 | |
| Economic Speed（km/h） | 65～88 | ||
| Maximum Gradability（%） | ≥34％ | ||
| Minimum Turning Diameter（m） | 14 | ||
Vehicle Disposition
| Engine | Model | MC11.32-40,MC11.36-40 |
| Net Power（kw）/Rotating Speed（r/min） | 235/1900,265/1900 | |
| Maximum Torque（Nm）/Rotating Speed（r/min） | 1600/1000～1400,1800/1000～1400 | |
| Gearbox | HW19712CL | |
| Clutch（mm） | 430A | |
| Rear Axle Type | MCY13 | |
| Rear Axle Gear Ratio | 4.11 | |
| Oil Tank（L） | 400 | |
| Chassis Cross Section（mm） | 270x85x10 | |
| Suspension (Frontal & Rear Springs) | 3/-,3/2+-,3/5,3/9+6,9/9+6 | |
| Tires | 12.00R20,295/80R22.5,315/80R22.5 |
|
