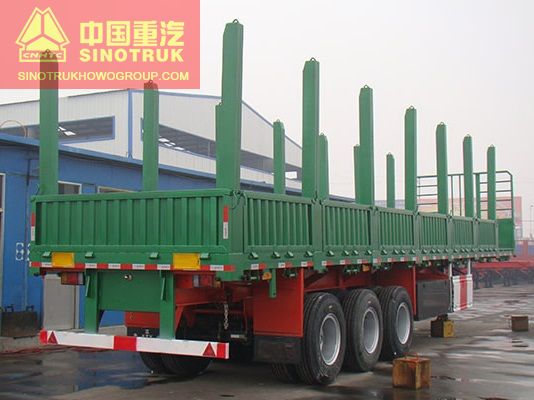

Timber Transport Semi Trailer
- Release time：
- Source：Sinotruk HOWO
Dimension:13000mm ×2490mm×2860mm
Loading Capacity:≤60 Tons
Axle:13 T/16T
Tire:12.00R22.5/ 315 80R22.5
|
Model |
Timber Transport Semi Trailer |
|
Dimension |
13000mm ×2490mm×2860mm(outside dimension ),12800×2300×1800mm (inside dimension) |
|
Curb Weight |
About 6.8-8.6T |
|
Loading Capacity |
≤60 Tons |
|
Axle |
13 T/16T, FUWA /BPW /Huajing Brand three axles |
|
Rim |
9.00-22.5 |
|
Tire |
12.00R22.5/ 315 80R22.5 |
|
Suspension
|
Mechanical suspension (German or American type)or air suspension (Chinese brand or BPW brand )
|
|
King pin |
JOST brand 2.0 or 3.5inch (bolted or welded type) |
|
Support leg |
JOST brand D200T or Chinese brand 28Tons (Double speed) |
|
Main beam |
Height: 500mm Upper plate: 14mm Middle Plate: 8mm,Bottom Plate is 16mm; Material: Q345B Steel |
|
Side beam |
16mm or 18mm steel channel (Material: Q235steel ). |
|
Side tube |
7 square tube on each side of trailer Tube size : 10×10mm |
|
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tanks |
|
ABS |
Optional |
|
Twist Locks |
Four ,Eight or Twelve pieces (lifting type or twist Screw type) |
|
Valve |
WABCO valve |
|
Light |
LED light (specially intended for oversea market ) |
|
Voltage |
24V |
|
Receptacle |
7-pin Socket (for 7 wire harness) |
|
Tool box |
1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
|
Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ container. |
