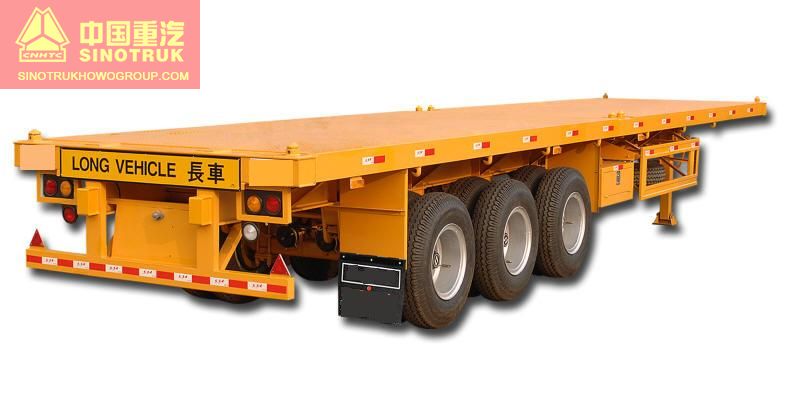

3 Axle Flatbed Container Semi-trailer
- Release time：
- Source：Sinotruk HOWO
| Tare Weight | About 7.1T |
| Dimension | 12450mm*2490mm*1575mm |
| Loading Capacity (T) | ≤ 45 T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 9.00-22.5 |
| Tire | 12.00R22.5/ 315 80R22.5 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
| Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
| Platform | 3mm diamond platform |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
