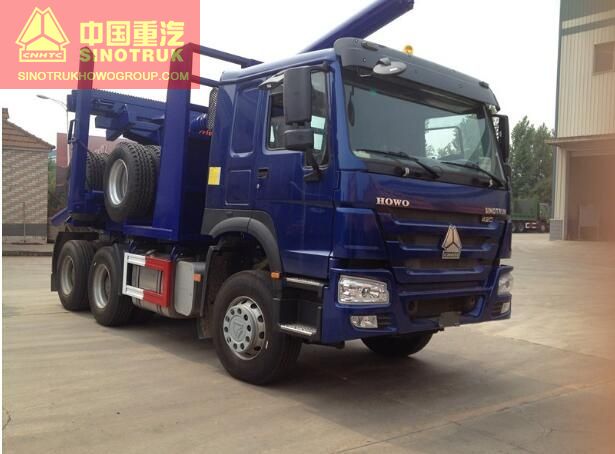

SINOTRUK 6X4 Log Carrier Truck
- Release time：
- Source：Sinotruk HOWO
SINOTRUK 6X4 Log Carrier Truck
|
DESCRIPTION Of Howo Chassis |
|||
|
Truck Model |
ZZ4257S3241W |
||
|
Truck Brand |
SINOTRUK—HOWO |
||
|
Driving Position |
Left hand Driving |
||
|
Fuel tanker capacity(L) |
400 |
||
|
The Total Mass |
25,000kg |
||
|
Curb Weight |
9180 |
||
|
Max speed(km/h)(km/h) |
90 |
||
|
Color |
Optional |
||
|
Dimension(Lx W xH)(unloaded)(mm) |
6800x2496x3568 |
||
|
Overhang(front/rear) (mm) |
1500/725 |
||
|
Wheel base (mm) |
3225+1350 |
||
|
Engine Model |
WD615.47 |
||
|
Hourse Power |
371hp |
||
|
Emission |
EURO II |
||
|
Kind of Fuel |
Diesel |
||
|
Fuel Consumption(L/100km) |
30L-50L/100km |
||
|
Front Axle Model |
HF7 axle. Capacity: 7000kg |
||
|
Rear Axle |
ST16 axle. Capacity:2X 16000kg |
||
|
Ratio of rear axle |
3.93 |
||
|
ABS |
With |
||
|
Battery |
2X12V/165Ah |
||
|
SEMI TRAILER SPECIFICATION |
|
|
Dimension(Lx W xH)(mm) |
2800x2496x2800(without draw bar) Side stake:1000mm |
|
Axle |
2x16T,Yongli Tai Brand(Fuwa opptional) |
|
Suspension |
Single Point Suspension 32T |
|
Tyre |
12.00R20,8pieces,Triangle Brand |
|
Steering Wheel |
A set of 20T steering wheel ,Yongli Tai Brand |
|
Draw Bar |
9000mm seamless steel tube, divided into two parts,one 5000mm, one 4000mm.Thickness is 10mm,Diameter is 210mm. |
|
Brake System |
With |
Sinotruk Log Carrier
1: Cab defence is for choice to avoid touching tree branches
2: Equipped with CNHTC 336HP and 371HP engine as well as HW19710 transmission
3: Ratchet wire rope log lock system and 10m adjustable can be used for logs of any length.
4: Both main body and trailer of the truck are equipped with log carrier turntable
5: Strong frame is solid and durable
6: The main body of truck adopts strengthened driving axle. The trailer adopts CNHTC special 13t and 16t balancing suspension
7: Trailer can be fixed to main body while the empty truck is working. The transport efficiency can be uplifted and its cost performance is better than the similar products home and abroad.
