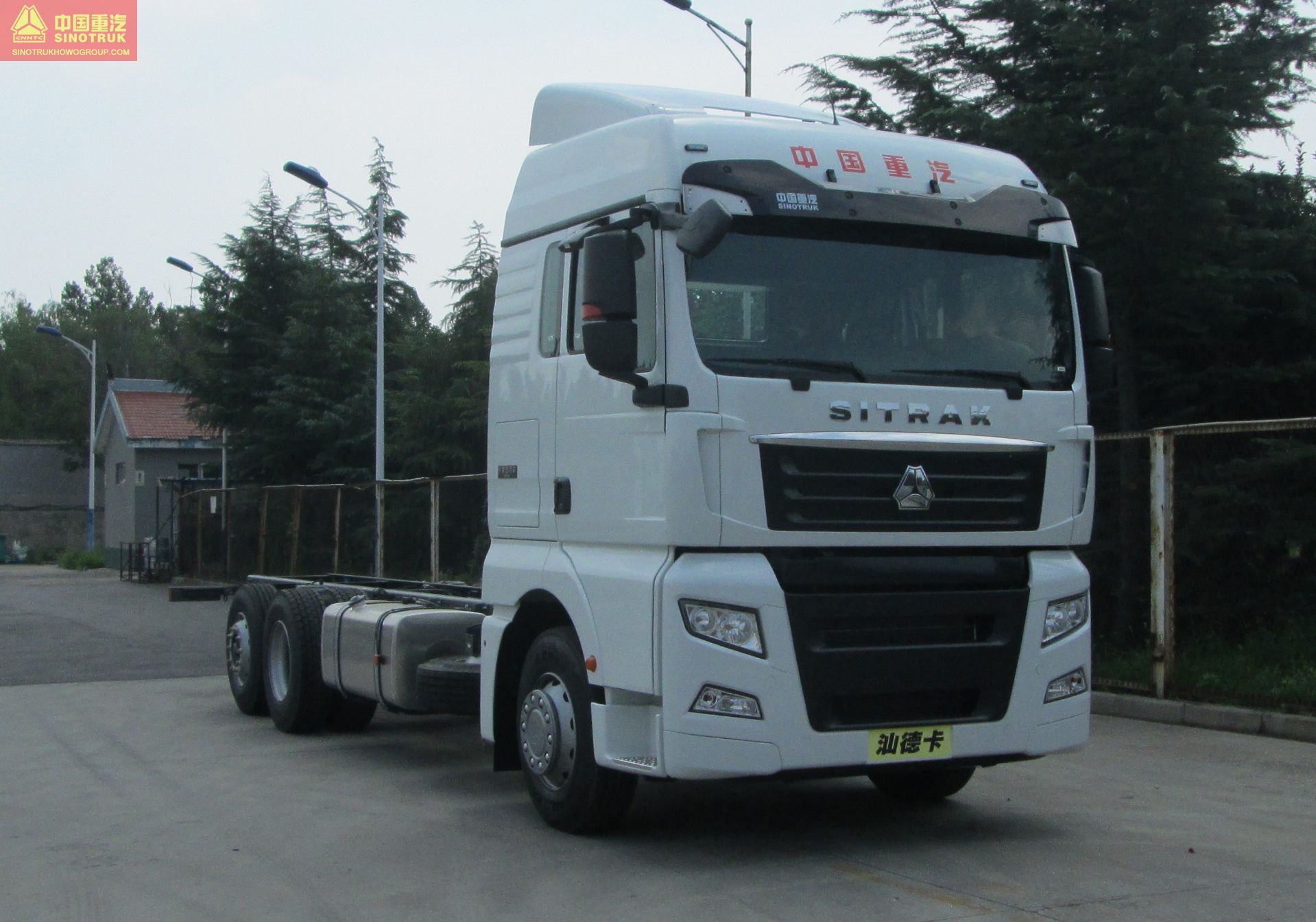

SITRAK-C7H Series ZZ1266V603HE1 Cargo truck chassis
- Release time:
- Source:Sinotruk HOWO

The vehicle is a new generation of high-end heavy truck developed by CNHTC based on the core assembly technology from MAN; tall and mighty, it is like a king showing its dominance of the road, its power, stability, reliability, economy and comfort meeting the international level, its safety, reliability and intelligent levels aligned with international standards; also, it offers multiple personalized configuration options. Applicable to the drop and pull transport on trunk highways for medium-high level organized transport and high-end logistics.
| Weight Parameter | Curb Mass (kg) | 8200 | |
| Full Loaded Mass (kg) | 25900 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 10175,11225,11875 |
| Width (mm) | 2496 | ||
| Height (mm) | 3410,3620,3960,3980 | ||
| Wheel Base (mm) | 4800+1350,6000+1350,6800+1350 | ||
| Min. Ground Clearance (mm) | 238 | ||
| Performance Parameter | Max. Speed (km/h) | 110 | |
| Economic Speed (km/h) | 70~90 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | |||
| Engine | Model | MC11.40-50,MC11.44-50 MC13.48-50,MC13.54-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1900/1000~1400,2100/1000~1400 2300/1050~1400,2500/1050~1350 | |
| Transmission | ZF16S | |
| Clutch(mm) | φ430 | |
| Rear Axle Type | MCY13 | |
| Rear Axle Ratio | 4.11(3.7,3.36,3.08,2.85) | |
| Fuel Tank (L) | 400 | |
| Frame Section(mm) | 270×85×8 | |
| Suspension (Front/Rear Spring) | 4/-/-,-/-/- | |
| Tire | 295/80R22.5 16PR,315/80R22.5 16PR | |
