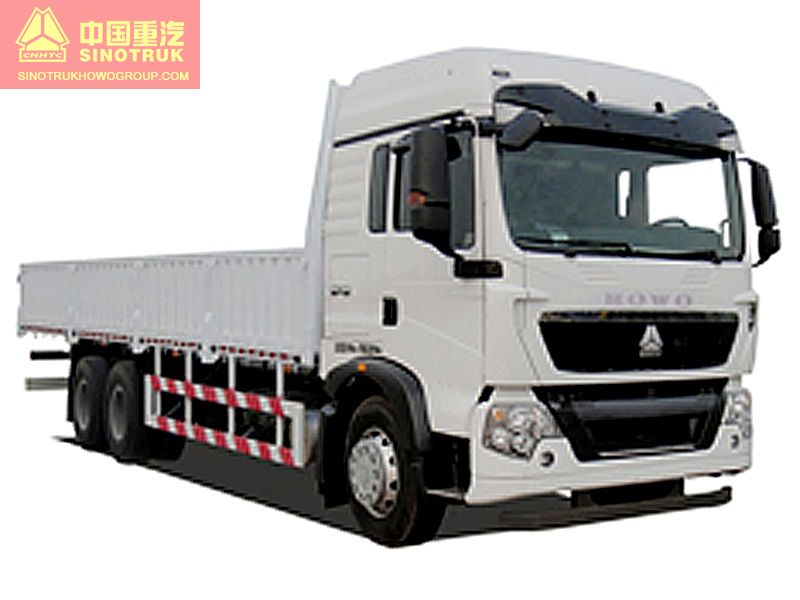

HOWO T5G Cargo Truck 6x4
- Release time：
- Source：Sinotruk HOWO
[HOWO-T5G] ZZ1257N584GD1
It is a new generation high-end medium and heavy truck derived from the MAN assembly, featured with the excellent fuel efficiency, low dead load, high engine force and high reliability, completed with multiple customized options, with the driving cab designed to provide a safe and comfortable home on the wheels, making it available for standard highway cargo transportation at all ranges.
Technical Parameters
| Mass Parameter | Curb Weight（kg） | 10500 | |
| Fully-Loaded Mass（kg） | 25000 | ||
| Towable Mass（kg） | 20000,24000 | ||
| Dimensions | Overall Dimensions | Length（mm） | 10600,12000 |
| Width（mm） | 2496 | ||
| Height（mm） | 3105,3405 | ||
| Wheel Base（mm） | 5175+1400,5200+1350,5775+1400,5800+1350 | ||
| Minimum Ground Clearance（mm） | 260 | ||
| Performance Parameters | Maximum Speed（km/h） | 110 | |
| Economic Speed（km/h） | 60～90 | ||
| Maximum Gradability（%） | >35 | ||
| Minimum Turning Diameter（m） | 22.1,24 | ||
Vehicle Disposition
| Engine | Model | MC07.31-40，MC07.34-40 |
| Net Power（kw）/Rotating Speed（r/min） | 225/2300,245/2300 | |
| Maximum Torque（Nm）/Rotating Speed（r/min） | 1230/1200～1800,1250/1200～1800 | |
| Gearbox | HW12710C-1311(11.11/0.75) | |
| Clutch（mm） | 430 | |
| Rear Axle Type | 457 | |
| Rear Axle Gear Ratio | 4.875 | |
| Oil Tank（L） | 300 | |
| Chassis Cross Section（mm） | 965 change 865×280×90×（8+5） | |
| Suspension (Frontal & Rear Springs) | 10/10,10/- | |
| Tires | 10.00-20,10.00R20,11.00-20,11.00R20 16PR,12R22.5 16PR,295/80R22.5 16PR | |
