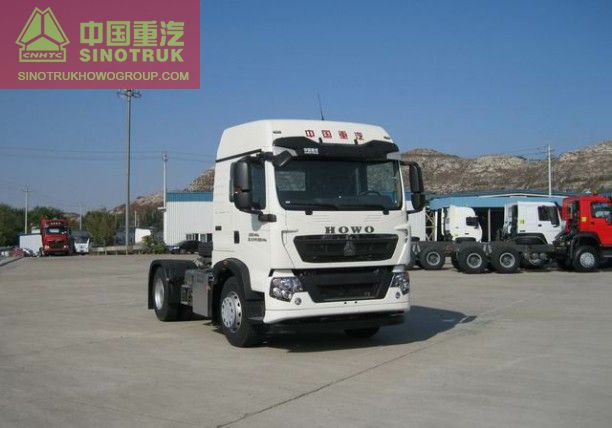

HOWO-TX Series ZZ4187N361GF1 Towing truck chassis
- Release time：
- Source：Sinotruk HOWO
This vehicle is a new generation of high-end heavy truck product newly developed by SINOTRUK using MAN core assembly technology. It is a leader of lightweight products. Its excellent power, stable and reliable performance, economy and comfort reach the international level. Its safety, reliability and intelligence level are in line with international standards. There are several personalized configuration options.
| Weight Parameter | Curb Mass (kg) | 6500 | |
| Full Loaded Mass (kg) | 18000 | ||
| Rated Towing Mass (kg) | 35300 | ||
| Dimension Parameter | External Size | Length (mm) | 5925 |
| Width (mm) | 2496 | ||
| Height (mm) | 3335，3830，3035，3535 | ||
| Wheel Base (mm) | 3600 | ||
| Min. Ground Clearance (mm) | 239 | ||
| Performance Parameter | Max. Speed (km/h) | 110 | |
| Economic Speed (km/h) | 70,89 | ||
| Max. Grade Ability (%) | 34 | ||
| Min. Turning Diameter (m) | 14 | ||
| Engine | Model | MC09.38-60 WP10H400E62 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1790/1100～1400 1900/1000～1400 | |
| Transmission | HW19712CL(HW19712L) | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY13JGS(3.7) | |
| Rear Axle Ratio | 3.7（可选3.36，4.63，2.85，3.08，4.11） | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 270×85×10 | |
| Suspension (Front/Rear Spring) | 3/5 | |
| Tire | 12R22.5,295/80R22.5，315/80R22.5，12.00R20，11.00R20 | |
